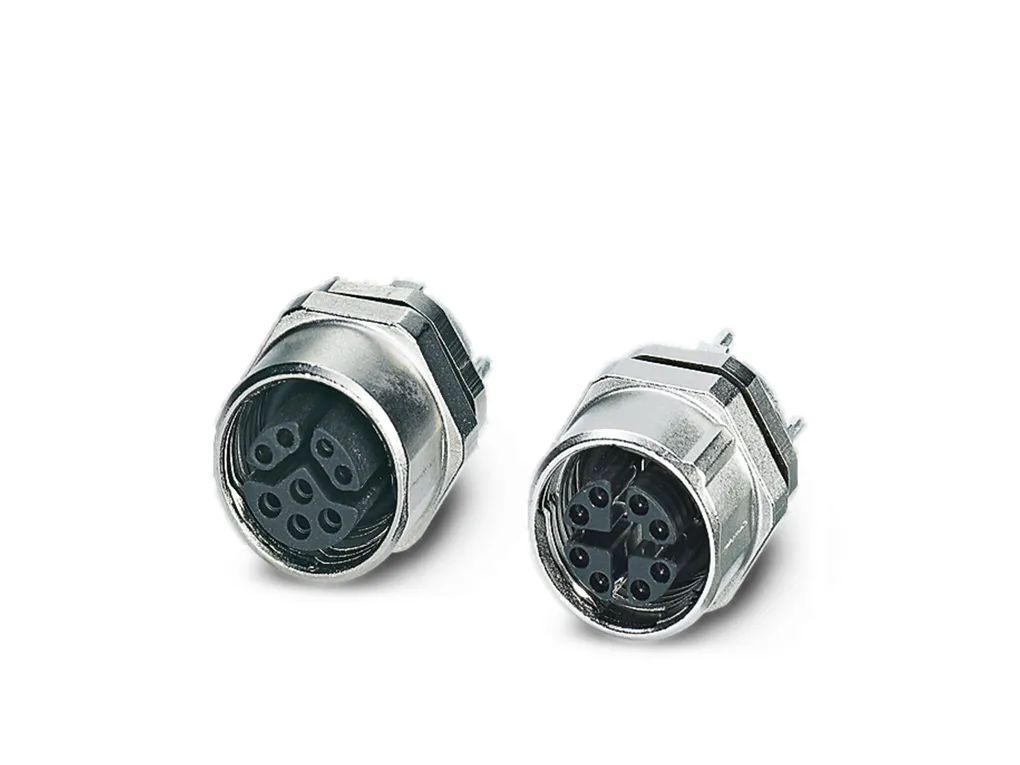

PHOENIX CONTACT 1411820
PHOENIX CONTACT 1411820
PHOENIX CONTACTNon disponibile

SACC-DSIV-FSX-8CON-L180 SCO - Device connector, rear mounting

Device connector, rear mounting, Ethernet CAT6A, 8-position, Socket, straight, M12-SPEEDCON, coding: X, Rear mounting, THR solder connection, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238913
Cod. Articolo: 1411820
Cod. Fornitore: 1411820
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: Lock nut is included in the scope of delivery
MountingMounting type: Rear mounting
Connection method: THR solder connection
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Ethernet
Number of positions: 8
Coding: X
Thread type: M12
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Material specificationsMaterial: Zinc die-cast (nickel-plated)
Flammability rating according to UL 94: V0
Seal material: EPDM
Material of grip body: Zinc die-cast, nickel-plated
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PPA
Material for screw connection: Zinc die-cast, nickel-plated
Electrical propertiesRated surge voltage: 1.5 kV
Contact resistance: < 5 mΩ
Insulation resistance: > 100 MΩ
Nominal voltage UN: 50 VAC
60 VDC
Nominal current IN: 0.5 A
Transmission characteristics (category): CAT6A
Connection dataConductor connection
Connection method: THR solder connection
Contact connection type: Socket
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: X
Cable/lineSignal type/category: Ethernet CAT6A
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP67
Ambient temperature (operation): -40°C ... 85°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00603.pdf

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_07588.pdf

Technical_drawing_13333.pdf
