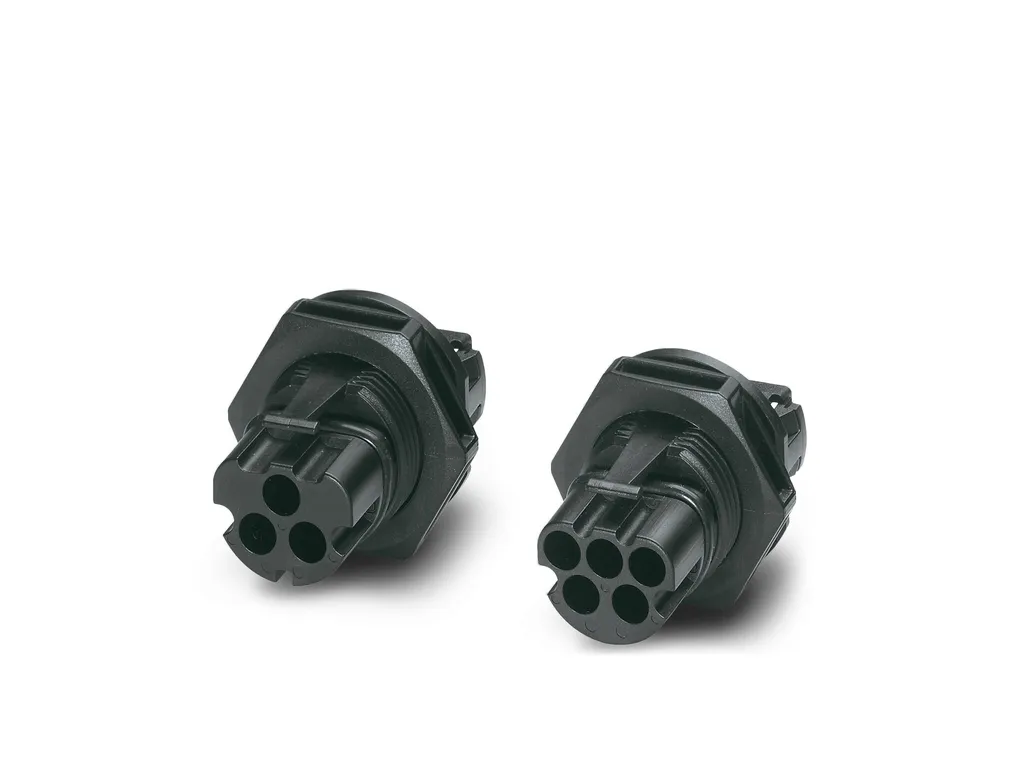

PHOENIX CONTACT 1409206
PHOENIX CONTACT 1409206
PHOENIX CONTACTNon disponibile

PRC 5-FT25-MC - Device connector, rear mounting

Device connector, rear mounting, Range of articles: PRC 35, housing material: PPE, color: black, number of positions: 5, rated voltage: 690VAC, rated current: 35 A, Connection method: Crimp connection, Contact connection type: Pin. This item is also available with other cable lengths. For your specific requirements, please contact your local PHOENIX CONTACT subsidiary.
Cod. Articolo: 1409206
Cod. Fornitore: 1409206
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: This item is also available with other cable lengths. For your specific requirements, please contact your local PHOENIX CONTACT subsidiary.
For assembly notes, please refer to the packing slip
Safety note
Safety note: • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixContact
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Operate the connector only when it is fully plugged in.
• Operate the connector only when it is fully plugged in and interlocked.
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product propertiesProduct type: Panel feed-through
Product family: PRC 35
Number of positions: 5
Connection profile: 4+PE
Coding: AD
Insulation characteristics
Protection class: II
Degree of pollution: 2
Connection dataConductor connection
Tightening torque: 2.5 Nm ±0.1Nm (Tightening torque nut)
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/bf328d807ac71648aa4b6a472e9450ef/-S204x204-FJPG
Width: 35 mm
Height: 46.6 mm
Length: 35 mm
Hole diameter: 25.5 mm
Wrench size, union nut: 32 mm
Electrical propertiesRated voltage (III/2): 690 V
Nominal voltage ATD: 690VAC (III/2) in accordance with IEC 61984
500VAC (III/2) in accordance with IEC 61535/2PfG1915
600 V AC / DC (III/2) in accordance with UL2238 / UL2237
500 V DC (III/2) in accordance with IEC 61535
Rated surge voltage (III/2): 8 kV
Rated current: 35 A (With 6mm² conductor cross section in accordance with IEC 61984)
32 A (With 6mm² conductor cross section in accordance with IEC 61535)
21.4 A (With 6mm² conductor cross section and 85°Cin accordance with 2 PfG 1915)
28 A (with AWG10, in accordance with UL2237)
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: 100
Insertion force: 40 N ±10N
Material specificationsColor: black
Color of the housing part: black
Flammability rating according to UL 94: V0
Insulating material group: I / CTI 600
Seal material: EPDM
Contact carrier material: PPE
O-ring material: Silicon
Material for screw connection: PPE
Housing material: PPE
Cable/lineHalogen-free: yes
MountingMounting type: Rear mounting
Connection method: Crimp connection
Environmental and real-life conditionsAmbient conditions
Degree of protection (when plugged in): IP66 / IP68 (2m / 24h) / IP69K
Degree of protection (not plugged in): IP65 (Longitudinal watertightness, only in conjunction with contacts from the accessories range)
Degree of protection: IP66 / IP68 (2m / 24h) / IP69K
Ambient temperature (operation): -40°C ... 105°C (dependent on the derating curve)
Ambient temperature (storage/transport): -40°C ... 70°C
Ambient temperature (assembly): 5°C ... 85°C
Standards and regulationsStandards/specifications: IEC 61984:2008
EN61984:2008
DINENIEC 61535:2020
IEC 61535:2019
2PfG1915/03.2015
UL 2237 Ed.1:2021-01-08
CSAC22.2No.182.3-16 Ed.2:2019-01
