SACC-DSI-MS-8CON-PG 9/1,0 SCO - Device connector rear mounting

Device connector rear mounting, Universal, 8-position, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, Pg9, Individual wires, cable length: 1 m, 0.25 mm2, TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238793
Cod. Articolo: 1408879
Cod. Fornitore: 1408879
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesNotes on operation: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:: Lock nut is included in the scope of delivery
General: Contact connection method: Crimp connection
MountingMounting type: Rear mounting Pg9 With flat nut
Assembly note: With flat nut
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Universal

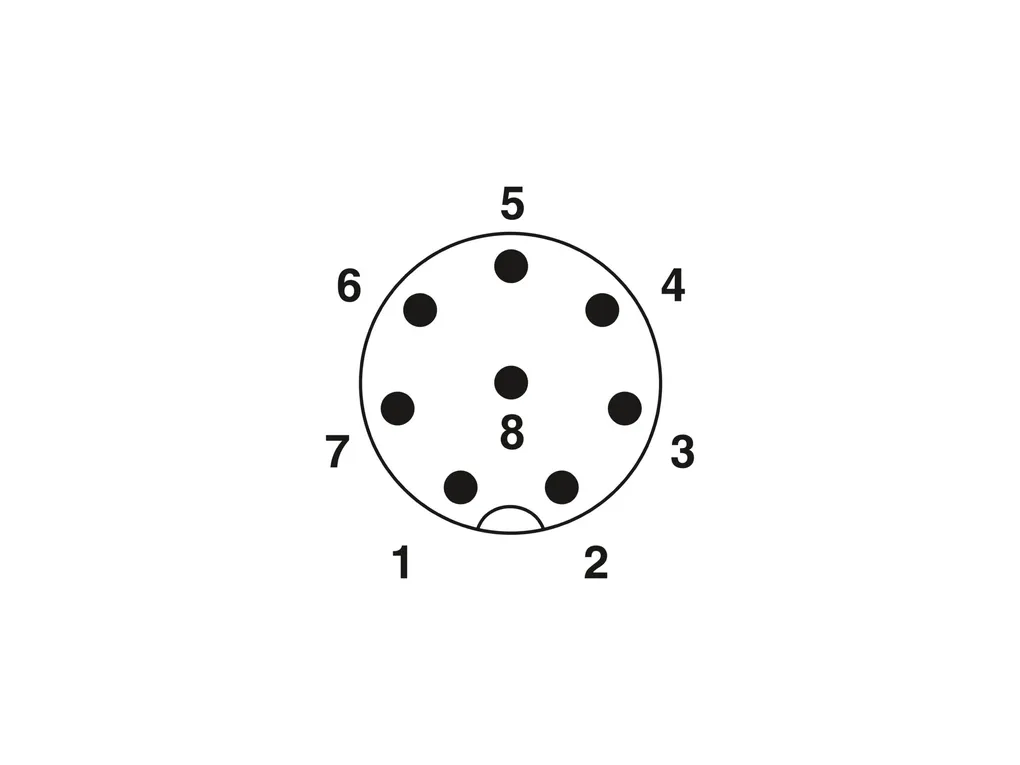

Number of positions: 8
No. of cable outlets: 1
Shielded: no
Coding: A
Thread type: M12
Data management status
Article revision: 08
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Conductor material: Tin-plated Cu litz wires
Electrical propertiesRated surge voltage: 0.8 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V (AC)
30 V (DC)
Nominal current IN: 2 A
Max. conductor resistance: 80 mΩ/m
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Pin
Conductor cross section: 0.25 mm²
Tightening torque: 2 Nm ... 3 Nm (Installation-side)
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 1 m
Cable type: TPE litz wire
Signal type/category: Universal
Wire diameter incl. insulation: 1.15 mm ±0.07 mm
Single wire, color: brown, blue, white, gray, pink, green, yellow, red
Cable cross section: 0.25 mm²
Conductor material: Tin-plated Cu litz wires
Conductor structure signal line: 14x 0.15 mm
AWG signal line: 24
Material wire insulation: TPE
Thickness, insulation: 0.21 mm
Nominal voltage, cable: 300 V
Test voltage, cable: 2000 V AC
Cable resistance: ≤ 80 mΩ/m
Cable insulation resistance: ≥ 20 MΩ*km
Ambient temperature (operation): -40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
-25 °C ... 85 °C (Cable, flexible installation)
-40 °C ... 85 °C (cable, fixed installation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
