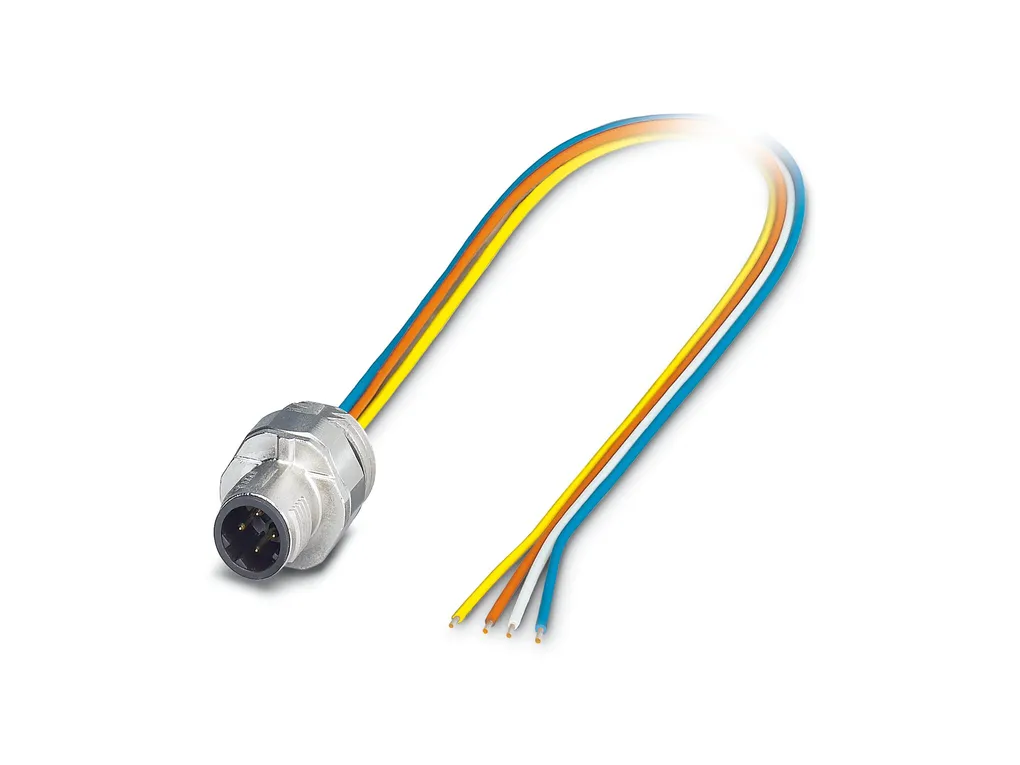

| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |

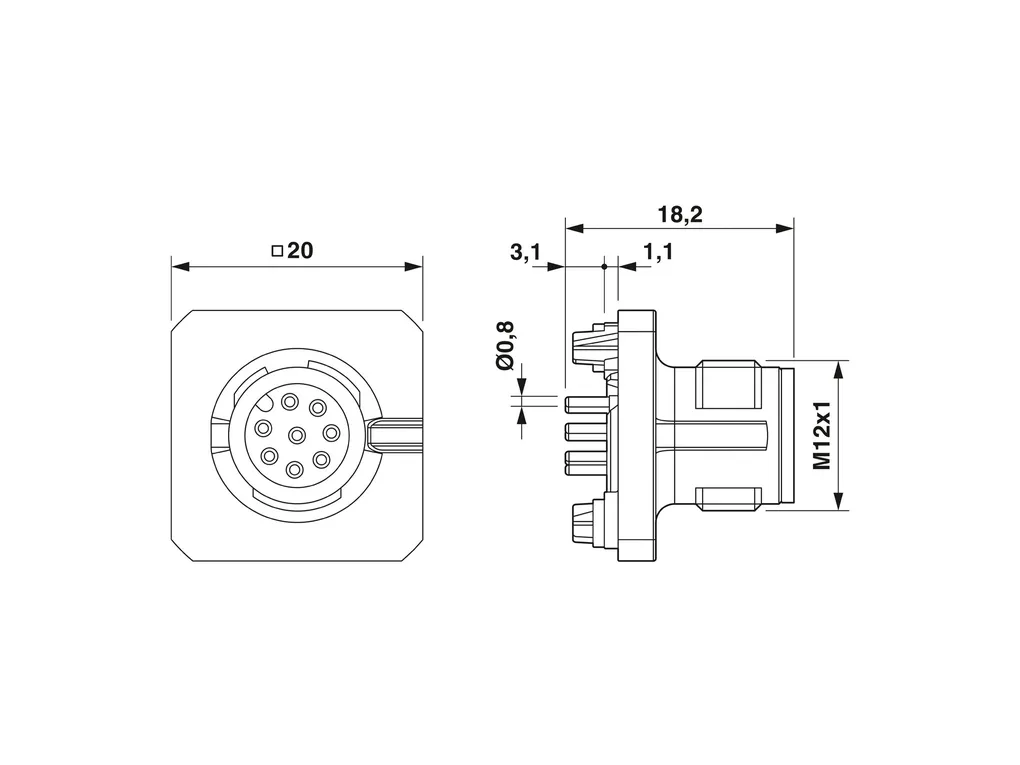

| Mounting | Mounting type: Front mounting Square flange 20 mm side length Assembly instructions: 20 mm side length Connection method: Wave soldering |
| Product properties | Product type: Circular connectors (device side) Sensor type: Universal Number of positions: 8 Shielded: yes Coding: A Thread type: M12 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, tin-plated |
| Electrical properties | Rated surge voltage: 0.8 kV Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 30 V Nominal current IN: 2 A Max. conductor resistance: 57.6 mé/m |
| Connection data | Conductor connection Connection method: Wave soldering Contact connection type: Pin Conductor cross section: 0.25 mm² Tightening torque: 3 Nm 4 Nm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Connector | Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Coding: A |
| Cable/line | Signal type/category: Universal Wire diameter incl. insulation: 1.15 mm ±0.07mm Cable cross section: 0.25 mm² Conductor structure signal line: 14x 0.15 mm Thickness, insulation: 0.21 mm Nominal voltage, cable: 300 V Test voltage, cable: 2000 VAC Cable resistance: ⤠57.6 mé/m Cable insulation resistance: ⥠20 Mé*km Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation) -25°C ... 85°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 85°C (Cable, flexible installation) -40°C ... 85°C (cable, fixed installation) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
