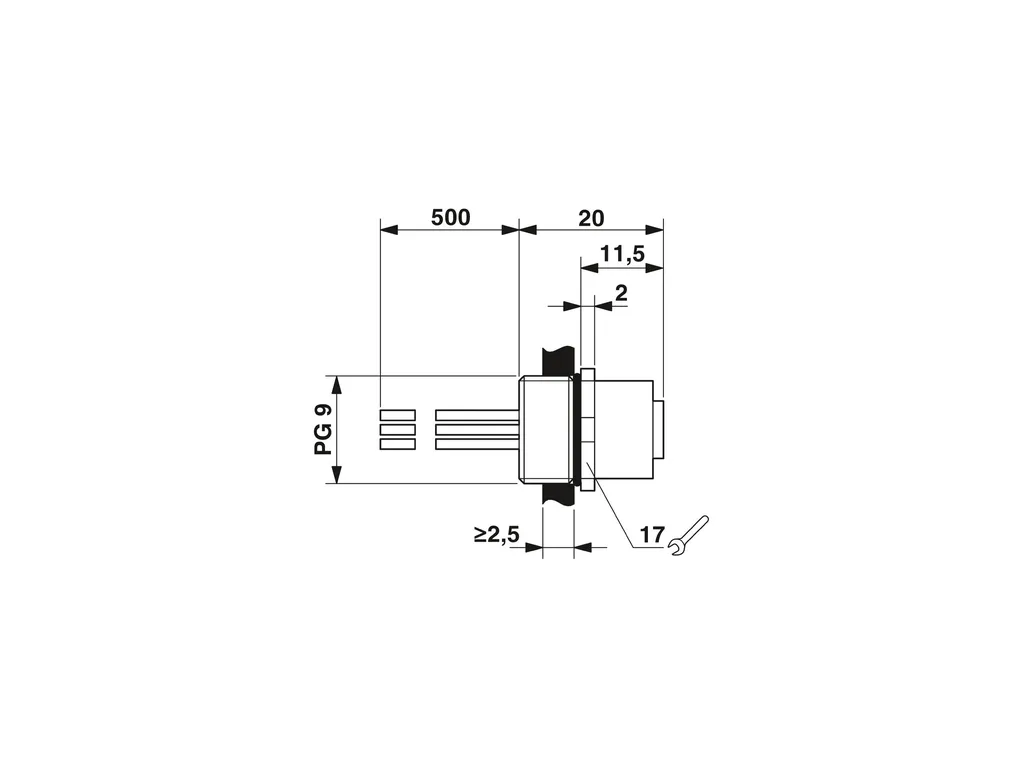

| Mounting | Mounting type: Front mounting Pg9 Connection method: Individual wires |
| Product properties | Product type: Circular connectors (device side) Sensor type: Universal Number of positions: 8 No. of cable outlets: 1 Shielded: no Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Contact material: CuZn Contact surface material: Au Contact carrier material: PA 66 GF Material for screw connection: Zinc die-cast, nickel-plated Conductor material: Tin-plated Cu litz wires |
| Electrical properties | Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 30 V Nominal current IN: 2 A Max. conductor resistance: 80 mé/m |
| Connection data | Conductor connection Connection method: Individual wires Contact connection type: Socket Conductor cross section: 0.25 mm² |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: A Connection 2 Head design: free cable end |
| Cable/line | Cable length: 2 m Cable type: TPE litz wire Signal type/category: Universal Wire diameter incl. insulation: 1.15 mm ±0.07mm Single wire, color: brown, blue, white, gray, pink, green, yellow, red Cable cross section: 0.25 mm² Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 14x 0.15 mm AWG signal line: 24 Material wire insulation: TPE Thickness, insulation: 0.21 mm Nominal voltage, cable: 300 V Test voltage, cable: 2000 VAC Cable resistance: ⤠80 mé/m Cable insulation resistance: ⥠20 Mé*km |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -25°C ... 90°C (cable, fixed installation) |
