TTC-6P-4X1-24-PT-I - Surge protection device

Surge protection, consisting of protective plug and base element, with integrated status indicator for four signal wires with common reference potential, e.g.,DigitalIN/OUT.

Cod. Articolo: 1334594 Copia - Copy

Cod. Fornitore: 1334594 Copia - Copy

PHOENIX CONTACT

Product properties	IEC test classification: C1 C2 C3 D1 Type: DIN rail module, two-section, divisible Product type: Surge protection for MCR technology Product family: TERMITRAB complete Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 24 VÃDC 24 VÃAC
Connection data	Connection method: Push-in connection Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12

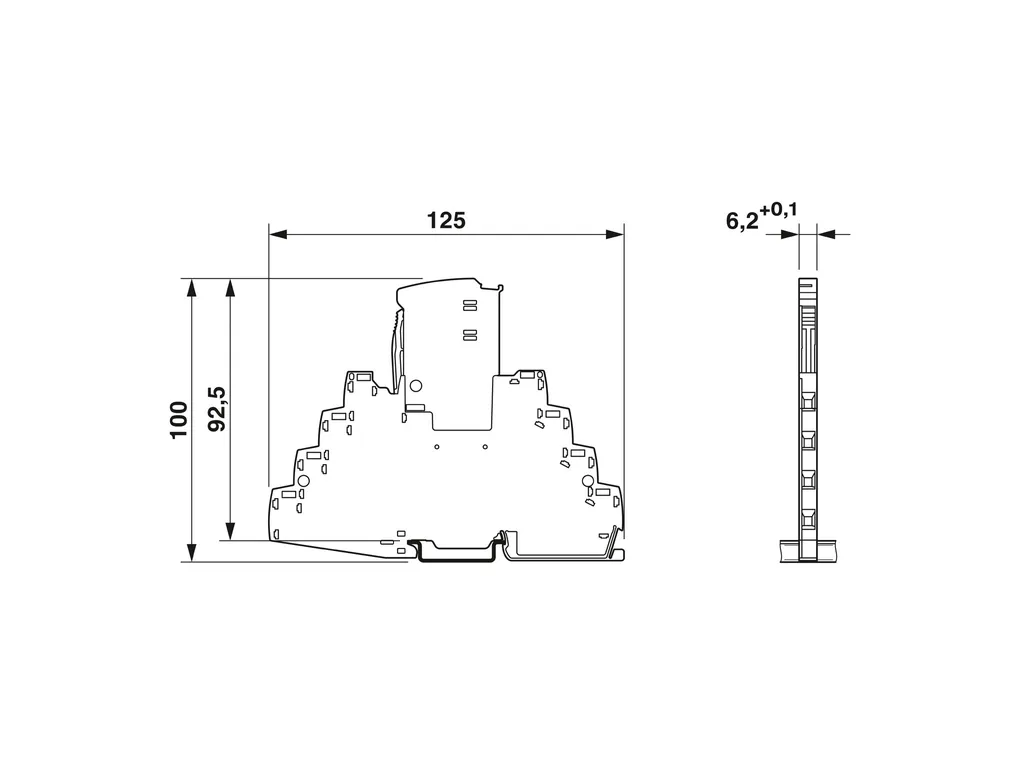

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/89df5dcbb4dcd54f85acbf3328ec0b4a/-S204x204-FJPG Width: 6.2 mm +0.1Ãmm Height: 125 mm Depth: 100 mm (incl. DIN rail 7.5Ãmm)
Material specifications	Flammability rating according to UL 94: V-0 Insulating material: PBT Housing material: PBT
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Line & Line-Earth Ground Maximum continuous voltage U_C: 36 VÃDC 26 VÃAC Rated current: 300 mA (40Ã°C) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 5 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 5 ÃµA Nominal discharge current I_n (8/20) Ãµs (line-ground): 8 kA Pulse discharge current I_imp (10/350)ÃÃµs (line-earth): 1 kA Total discharge current I_total (8/20)ÃÃµs: 15 kA Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 180 V (C1 - 1ÃkV / 500ÃA) Ã¢Ã¢°¤ 180 V (C2 - 10 kV / 5 kA) Ã¢Ã¢°¤ 55 V (C3 - 25ÃA) Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Input attenuation aE, sym.: typ. 0.3 dB (Ã¢Ã¢°¤ 10 MHz/150 Ã©) Cut-off frequency fg (3ÃdB), sym. in 150ÃÃ© system: > 50 MHz Capacity (Core-Earth): typ. 50 pF Resistance per path: 3.3 Ã© Ã±20Ã% Surge protection fault message: optical Max. required back-up fuse: 315 mA (FF) Impulse durability (line-earth): C1 - 1ÃkV / 500ÃA C2 - 10ÃkV / 5ÃkA C3 - 100ÃA D1 - 1ÃkA Pulse reset time (line-earth): Ã¢Ã¢°¤ 25Ãms Additional technical data Max. total discharge current I _{total max} (8/20)ÃÃµs: 20 kA
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: Ã¢Ã¢°¤ 4000 m (amsl) Permissible humidity (operation): 5 % ... 95 %
Standards and regulations	Standards/specifications: IEC 61643-21 ENÃ61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 2001 + A1:2009 + A2:2013
Mounting	Mounting type: DIN rail: TH 35 - 7.5 mm
