PHOENIX CONTACT 1308663
PHOENIX CONTACT 1308663
PHOENIX CONTACTNon disponibile

PRC 20/5-C2-FC-FS2,5 6-14 - Coupler connector

Coupler connector, Range of articles: PRC 20, color: black, number of positions: 5, min. conductor cross section: 0.5 mm2, max. conductor cross section: 2.5 mm2, rated voltage: 400 V, rated current: 20 A, Connection method: Screw connection, Contact connection type: Socket, Setting option for release: 1. with a tool or 2. by hand, scope: SIGNAL
Cod. Articolo: 1308663
Cod. Fornitore: 1308663
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Descrizione
Download
Caratteristiche Tecniche
NotesOrder information:: Setting option for release: 1. with a tool or 2. by hand
Note on application: For assembly notes, please refer to the packing slip
Product propertiesProduct type: Installation connector
Product family: PRC 20
Area of application: SIGNAL
Number of positions: 5
Connection profile: 5
Coding: 5-C2
Data management status
Article revision: 04
Insulation characteristics
Protection class: II
Electrical propertiesNominal voltage ATD: 400 V (III/2.00) in accordance with IEC 61984
400 V AC (III/2.00) in accordance with IEC 61535
600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237
500 V DC (III/2.00) in accordance with IEC 61535
Rated current: 20 A (With 2.5 mm² conductor cross section in accordance with IEC 61535)
DimensionsWidth: 28.5 mm
Height: 28.5 mm
Length: 80.4 mm
Material specificationsColor: black
Material: EPDM (Cable seal)
EPDM (Housing seal)
PPE (Housing)
PPE (Contact carriers)
PPE (Cable gland)
CuZn (Contact material, Pb < 0.1)
Flammability rating according to UL 94: V0
Cable/lineSingle wire, cross section: 0.5 mm² 2.5 mm²
Stripping length of the individual wire: 10 mm (Lay PE conductor 8 mm leading)
Halogen-free: yes
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP66
IP68 (2 m / 2 h)
IP69
Category of shock impact: IK08 (-25 °C)

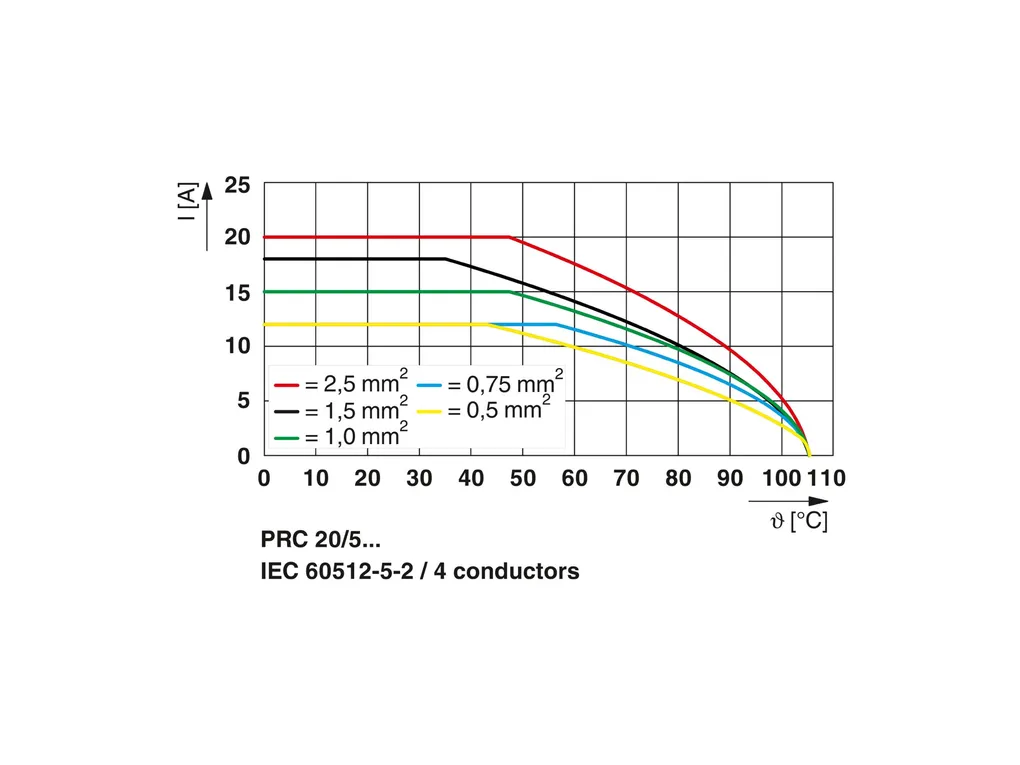

Ambient temperature (operation): -40 °C ... 85 °C (observe derating)
Ambient temperature (storage/transport): -40 °C ... 75 °C
Ambient temperature (assembly): -5 °C ... 85 °C
Descrizione
PRC 20/5-C2-FC-FS2,5 6-14 Connettore
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_03825.pdf

Manufacturer_declaration_03826.pdf

Package_slip_01791.pdf

Technical_drawing_10928.pdf
