| Dimensions | Dimensional drawing: https://caas.phoenixcontact.com/caas/v1/stable/media/38818/full/b1500?format=jpg Width: 30 mm Height: 184 mm Depth: 30.3 mm |
| Notes | Note on application Note on application: Only for industrial use |
| Material specifications | Housing material: Zinc die-cast |
| Input data | IO-Link Number of ports: 1 Connection method: M12 connector (A-coded) Note on the connection method: Push-pull fast connection according to IEC 61076-2-010 or screw connection according to IEC 61076-2-101 Connection technology: 3-conductor Port type: Class A Specification: V1.1.3 Reverse polarity protection: yes Transmission speed: 230.4 kbps (COM3) Cycle Time: 2 ms Process data update: 2 ms Amount of process data: 8 Byte (Input data) 0 Byte (Output data) Analog Input name: Analog inputs Description of the input: Inputs for resistive temperature sensors Number of inputs: 4 Connection method: M12 connector (A-coded) Note on the connection method: Push-pull fast connection according to IEC 61076-2-010 or screw connection according to IEC 61076-2-101 Connection technology: 2-, 3-, 4-conductor (shielded) A/D converter resolution: 24 bit Sensor types (RTD) that can be used: Pt sensors Data formats: Standardized representation Measured value representation: 16 bits (15 bits + sign bit) Input filter time: 120 ms Nominal value of the current sources: 1 mA (Pt 100; pulsed current, the data is valid during the sampling phase) 210 õA (Pt 1000; pulsed current, the data is valid during the sampling phase) Differential non-linearity: typ. 1 ppm / ñ0.0001 % (in all ranges) Integral non-linearity: typ. 30 ppm / ñ0.003 % (Pt 100) Protective circuit: Transient protection Surge protection (35 V for 0.5 s) |

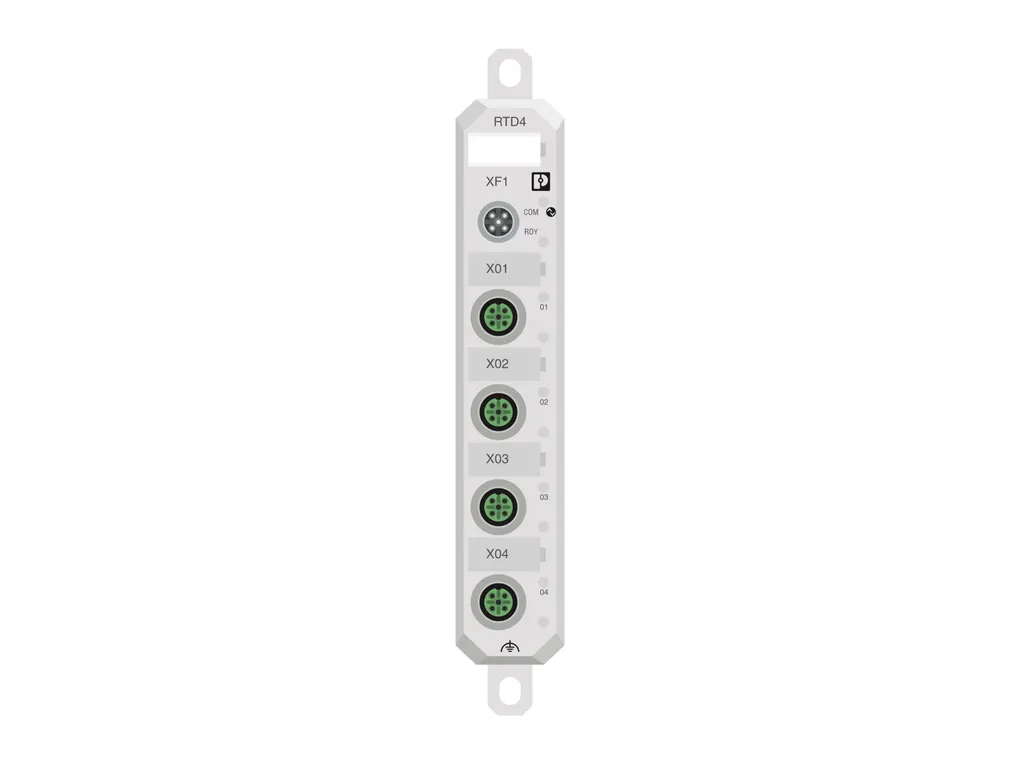

| Product properties | Product type: I/O component Product family: Axioline E Type: Stand-Alone Special properties: IO-Link Data management status Article revision: 00 Insulation characteristics Pollution degree: 2 (IEC 60664-1, EN 60664-1) |
| Electrical properties | Supply: IO-Link Designation: IO-Link port supply (L+) Nominal voltage for I/O supply: 24 V DC (Provided via the IO-Link interface of the IO-Link master.) Supply voltage range: 18 V DC ... 30 V DC (including all tolerances, including ripple) Nominal current per device: approx. 35 mA Current consumption: max. 50 mA (Device dependent; observe the current of the IO-Link master that is made available via L+.) Protective circuit: Reverse polarity protection; yes Electrical isolation/isolation of the voltage ranges Test voltage: 24 V supply L+ (IO-Link)/functional ground: 500 V AC, 50 Hz, 1 min. Test voltage: 24 V supply L+ (IO-Link)/analog inputs: 500 V AC, 50 Hz, 1 min. Test voltage: Analog inputs/functional ground: 500 V AC, 50 Hz, 1 min. |
| Connection data | Connection method: M12 connector Tightening torque: 0.4 Nm |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -25 °C ... 70 °C Degree of protection: IP65/IP67/IP69 Air pressure (operation): 70 kPa ... 106 kPa (up to 3000 m above sea level) Air pressure (storage/transport): 70 kPa ... 106 kPa (up to 3000 m above sea level) Ambient temperature (storage/transport): -25 °C ... 85 °C Permissible humidity (operation): 5 % ... 95 % Permissible humidity (storage/transport): 5 % ... 95 % |
| Standards and regulations | Protection class: III (IEC 61140, EN 61140, VDE 0140-1) |
