| Notes | General: Refer to the data sheet for the range in the download area. |
| Product properties | Product type: Upper housing part Product family: ICS50-..100X.. Type: Upper part, integrated 2.4" resistive touch display Housing type: DIN rail housing Ventilation openings present: no Housing series: ICS Display Display type: Color display TFT resistive Diagonal: (Display) 2.4 in. / 6.9 cm (Display) Screen resolution: 320x240Pixel(s) Display formats: 3:4 Display lighting type: LED, white Controller: ST7789V |
| Interfaces | Interface: 4-wire SPI half duplex |

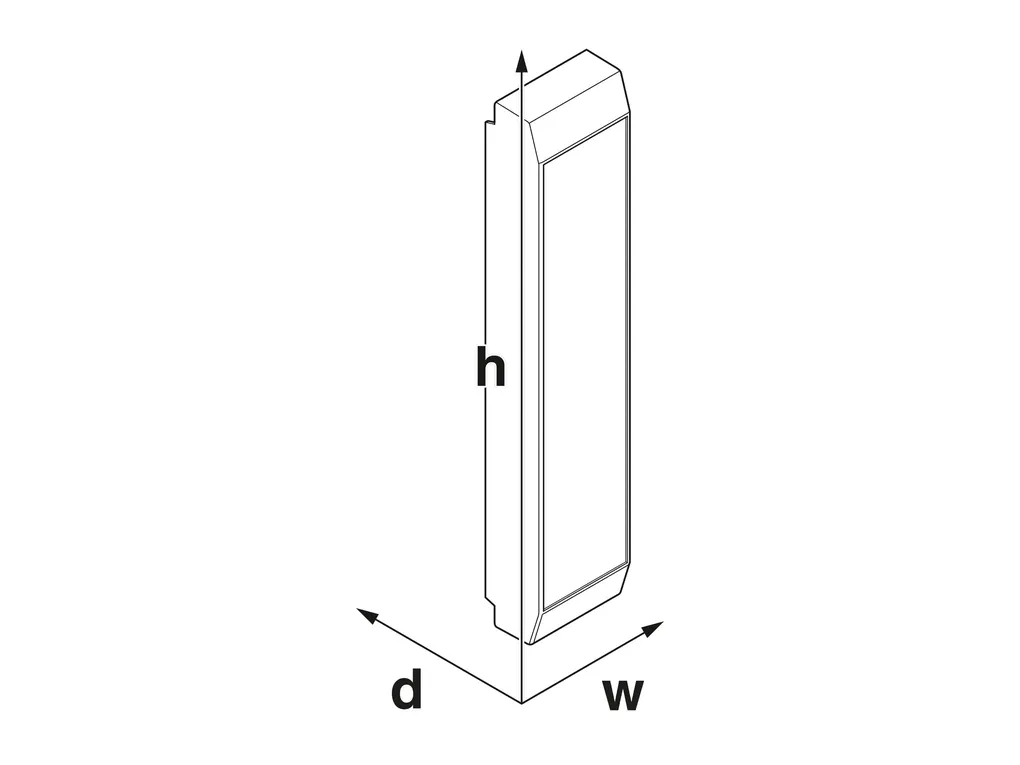

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/58205c05e81e264687b6a21b13a31ba0/-S204x204-FJPG Width: 50.1 mm Height: 100 mm Depth: 14.35 mm Dimensions: 50.1 mm x 100 mm x 14.35 mm 48.96 mm x 36.72 mm (Active range) PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Vibration test Specification: IEC 60068-2-6:2007-12 Result: Test passed Frequency: 10 - 150 - 10 Hz Sweep speed: 1octave/min Amplitude: 0.15mm (10Hz...58.1Hz) Acceleration: 20m/s² Test duration per axis: 2.5 h Test directions: X-, Y- and Z-axis Shocks Specification: IEC 60068-2-27:2008-02 Result: Test passed Acceleration: 150m/s² Shock duration: 11ms Number of shocks per direction: 3 Test directions: X-, Y- and Z-axis (pos. and neg.) Test for substances that would hinder coating with paint or varnish Specification: VDMA24364:2018-05 Result: Test passed Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -20°C ... 70°C (depending on power dissipation) Ambient temperature (storage/transport): -20°C ... 55°C Ambient temperature (assembly): -5°C ... 70°C Relative humidity (storage/transport): 80 % |
| PCB data | Number of PCB holders: 4 Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting type: Snap in Mounting position: Vertical (horizontal DIN rail) |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
