PHOENIX CONTACT 1180145
PHOENIX CONTACT 1180145
PHOENIX CONTACTNon disponibile

VAL-EV-T2 280/3+1-R - Type 2 surge arrester

CHARX protect basic: Plug-in surge protective device, in accordance with Type 2/ClassII, for 3-phase power supply networks with separate N and PE (5-conductor system:L1,L2,L3,N,PE), with remote indication contact. Specifically designed for use in e-mobility.
Cod. Articolo: 1180145
Cod. Fornitore: 1180145
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesIEC test classification: II
T2
EN type: T2
IEC power supply system: TN-S
TT
Type: DIN rail module, two-section, divisible
Product type: Surge arrester
Product family: VALVETRAB MS
Number of positions: 4
Surge protection fault message: Optical, remote indicator contact
Insulation characteristics
Overvoltage category: III
Pollution degree: 2
Electrical propertiesNominal frequency fN: 50 Hz (60ÂHz)
Indicator/remote signaling
Connection name: Remote fault indicator contact
Switching function: Changeover contact
Operating voltage: 5 VÂAC ... 250 VÂAC
30 VÂDC
Operating current: 5 mA AC ... 750 mA AC
1 AÂDC
Connection dataConnection method: Screw connection
Fork-type cable lug
Screw thread: M5
Tightening torque: 3 Nm (1.5Âmm² ... 16Âmm²)
4.5 Nm (25Âmm²Ãƒ‚...Â35Âmm²)
Stripping length: 16 mm
Conductor cross section flexible: 1.5 mm² ... 25 mm²
1.5 mm² ... 16 mm²
Conductor cross section rigid: 1.5 mm² ... 35 mm²
Conductor cross section AWG: 15 ... 2
Remote fault indicator contact
Connection method: Plug-in/screw connection via COMBICON
Screw thread: M2
Tightening torque: 0.25 Nm
Stripping length: 7 mm
Conductor cross section flexible: 0.14 mm² ... 1.5 mm²
Conductor cross section rigid: 0.14 mm² ... 1.5 mm²
Conductor cross section AWG: 28 ... 16

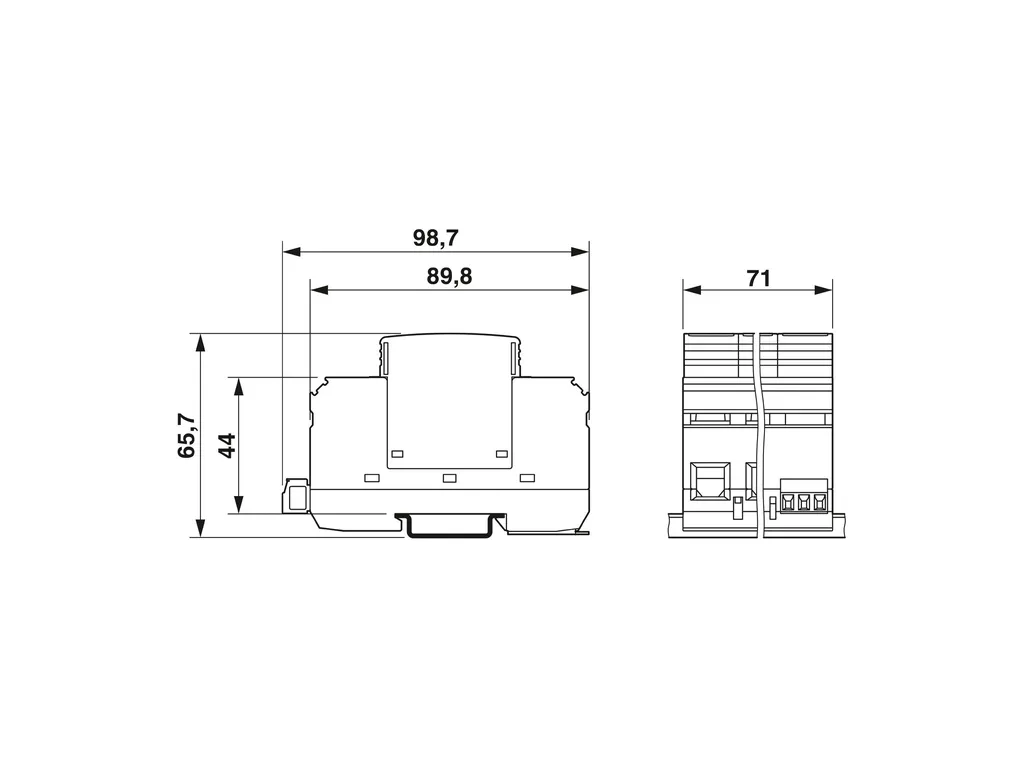

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/c9329e824dc5274e831fa0e6683a4f12/-S204x204-FJPG
Width: 71 mm
Height: 98.7 mm
Depth: 65.7 mm (incl. DIN rail 7.5Âmm)
Horizontal pitch: 4 Div.
Material specificationsFlammability rating according to UL 94: V-0
CTI value of material: 600
Insulating material: PA 6.6/PBT
Material group: I
Housing material: PA 6.6
PBT
Mechanical propertiesMechanical data
Open side panel: No
Protective circuitMode of protection: L-N
L-PE
N-PE
Direction of action: 3L-N & N-PE
Nominal voltage UN: 240/415ÂVÂAC (TN-S)
240/415ÂVÂAC (TT)
Nominal frequency fN: 50 Hz (60ÂHz)
Maximum continuous operating voltage UC (L-N): 280 VÂAC
Maximum continuous operating voltage UC (L-PE): 280 VÂAC
Maximum continuous operating voltage UC (N-PE): 260 VÂAC
Rated load current IL: 80 A
Residual current IPE: ≤ 5 µA
Standby power consumption PC: ≤ 450 mVA
Nominal discharge current In (8/20) µs: 20 kA
Maximum discharge current Imax (8/20) µs: 40 kA
Follow current interrupt rating Ifi (N-PE): 100 A
Short-circuit current rating ISCCR: 25 kA
Voltage protection level Up (L-N): ≤ 1.5 kV
Voltage protection level Up (L-PE): ≤ 1.9 kV
Voltage protection level Up (N-PE): ≤ 1.5 kV
Residual voltage Ures (L-N): ≤ 1.5 kV (at In)
≤ 1.3 kV (at 10 kA)
≤ 1.2 kV (at 5 kA)
≤ 1.1 kV (at 3ÂkA)
Residual voltage Ures (L-PE): ≤ 1.9 kV (at In)
≤ 1.5 kV (at 10 kA)
≤ 1.3 kV (at 5 kA)
≤ 1.2 kV (at 3ÂkA)
Residual voltage Ures (N-PE): ≤ 0.4 kV (at In)
≤ 0.25 kV (at 10 kA)
≤ 0.15 kV (at 5 kA)
≤ 0.1 kV (at 3ÂkA)
TOV behavior at UT (L-N): 415 VÂAC (5Âs / withstand mode)
440 VÂAC (120Âmin / safe failure mode)
TOV behavior at UT (N-PE): 1200 VÂAC (200Âms / withstand mode)
Response time tA (L-N): ≤ 25 ns
Response time tA (L-PE): ≤ 100 ns
Response time tA (N-PE): ≤ 100 ns
Max. backup fuse with V-type through wiring: 80 A (gG)
Max. backup fuse with branch wiring: 125 A (gG)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP20 (only when all terminal points are used)
Ambient temperature (operation): -40°C ... 80°C
Ambient temperature (storage/transport): -40°C ... 80°C
Altitude: ≤ 2000 m (amsl)
Permissible humidity (operation): 5 % ... 95 %
Shock (operation): 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
Standards and regulationsStandards/specifications: IEC 61643-11
ENÂ61643-11
Note: 2011
2012
MountingMounting type: DIN rail: 35 mm
