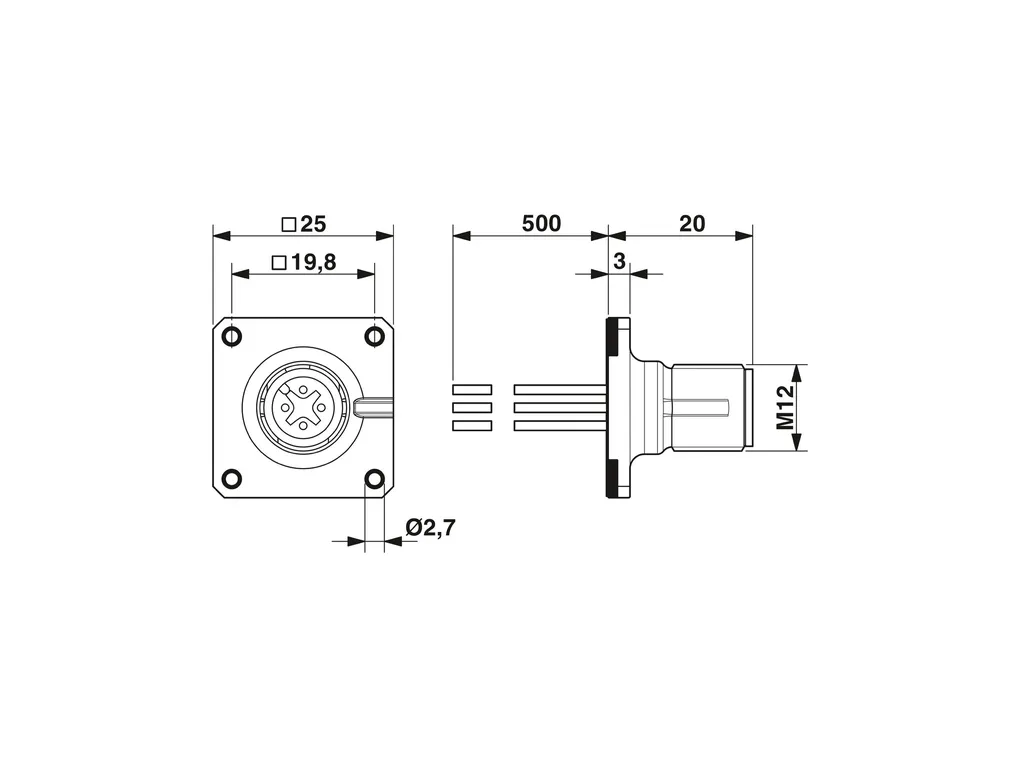

SACC-DSI-M12MSL4FE-M16XL/0,5GR - Device connector, rear mounting

Device connector, rear mounting, 5-position, Pin, straight, M12, coding: B M12, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 2.50 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238572

Cod. Articolo: 1163083 Copia - Copy

Cod. Fornitore: 1163083 Copia - Copy

PHOENIX CONTACT

Notes	General: Lock nut is included in the scope of delivery Contact connection method: Crimp connection
Mounting	Mounting type: Rear mounting M16 x 1.5 Tightening limitation Assembly instructions: Tightening limitation Connection method: Individual wires
Product properties	Product type: Circular connectors (device side) Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: B Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Color: gray Flammability rating according to UL 94: V0 Seal material: FKM Material of grip body: Zinc die-cast, nickel-plated Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated Conductor material: Tin-plated Cu litz wires
Electrical properties	Rated voltage in acc. with IEC 61076-2-101: 63 V Rated surge voltage: 1.5 kV AC/DC Nominal voltage U_N: 63 VDC
Connection data	Conductor connection Connection method: Individual wires Contact connection type: Pin Conductor cross section: 2.5 mm²
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Connector	Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Coding: B
Cable/line	Cable length: 0.5 m Cable type: TPE litz wire Single wire, color: brown 1, white 2, blue 3, black 4, pink FE Cable cross section: 2.5 mm² Conductor material: Tin-plated Cu litz wires AWG signal line: 14 Halogen-free: according to IEC 60754-1 Flame resistance: in acc. with UL FT-2 Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -25°C ... 105°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 105°C (Cable, flexible installation) -40°C ... 105°C (cable, fixed installation)
Standards and regulations	Flame resistance: in acc. with UL FT-2 M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101

Accedi ai servizi

Entra nella tua area riservata

Accedi ai servizi

SACC-DSI-M12MSL4FE-M16XL/0,5GR - Device connector, rear mounting

Altri prodotti correlati

SACCBP-M12FSX-8CON-M16/1,03-94F - Device connector rear mounting
Cod. Articolo: 1412361

SACC-EC-M12MS-8CON-PG 9/0,5 VA - Device connector front mounting
Cod. Articolo: 1554636

VS-MSDBPS-OE-93K-LI/0,5 - Device connector, rear mounting
Cod. Articolo: 1419158

Accedi ai servizi

Entra nella tua area riservata

Accedi ai servizi

SACC-DSI-M12MSL4FE-M16XL/0,5GR - Device connector, rear mounting

Altri prodotti correlati

SACCBP-M12FSX-8CON-M16/1,03-94F - Device connector rear mountingCod. Articolo: 1412361

SACC-EC-M12MS-8CON-PG 9/0,5 VA - Device connector front mountingCod. Articolo: 1554636

VS-MSDBPS-OE-93K-LI/0,5 - Device connector, rear mountingCod. Articolo: 1419158

SACCBP-M12FSX-8CON-M16/1,03-94F - Device connector rear mounting
Cod. Articolo: 1412361

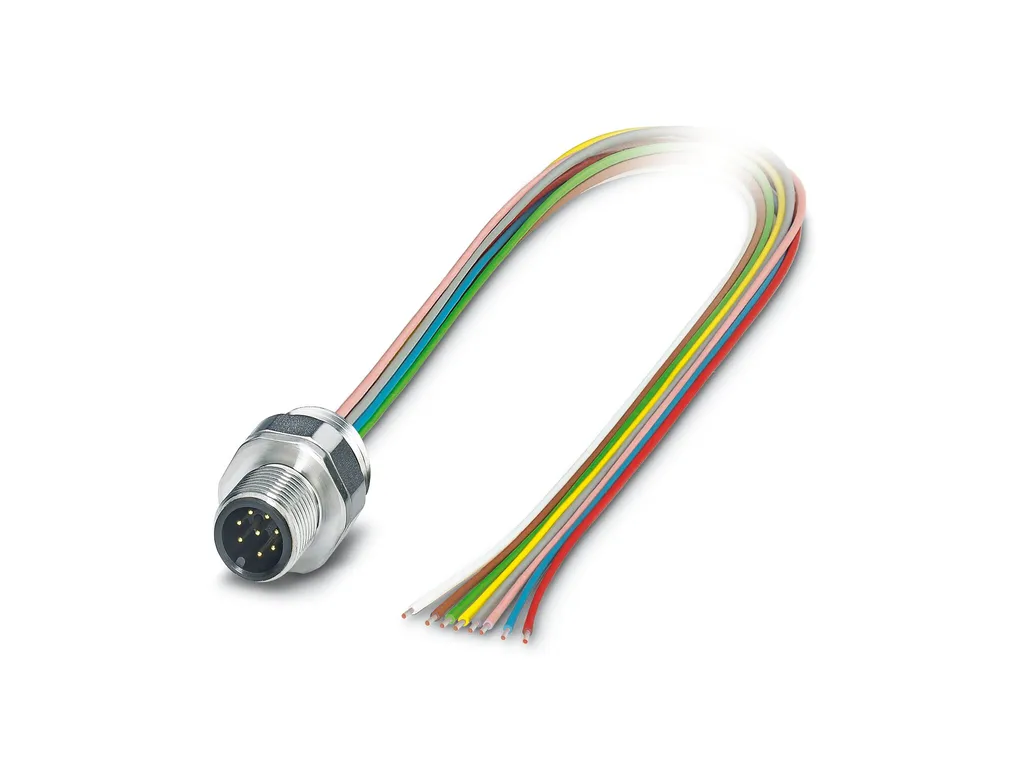

SACC-EC-M12MS-8CON-PG 9/0,5 VA - Device connector front mounting
