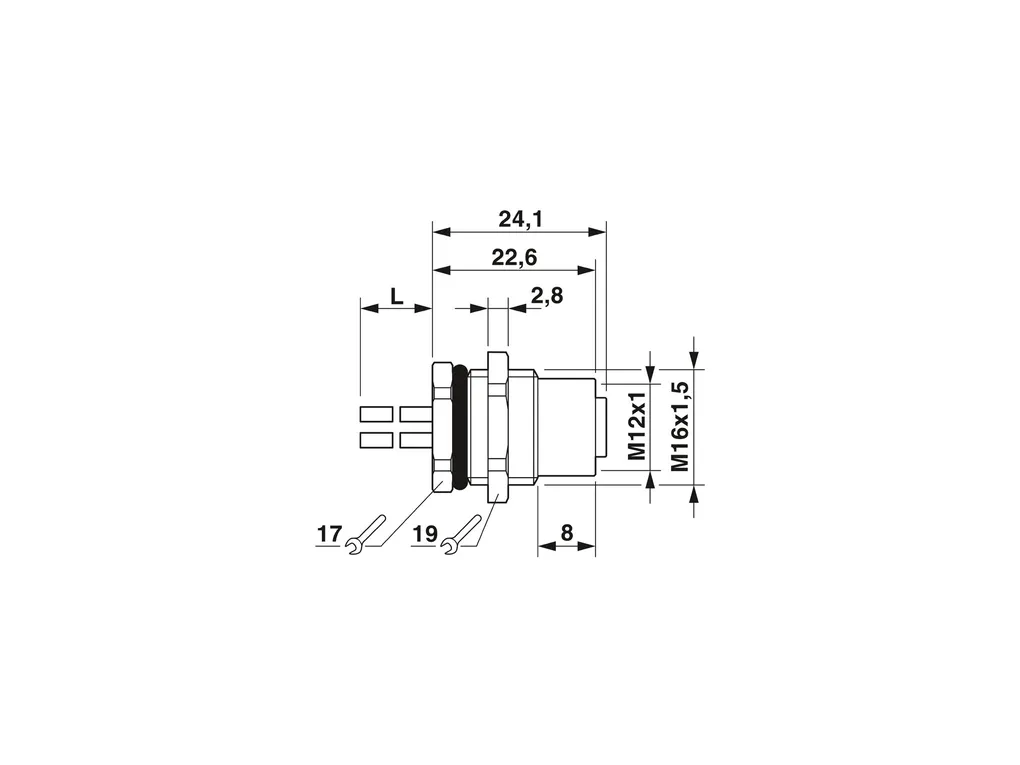

PHOENIX CONTACT 1162598
PHOENIX CONTACT 1162598
PHOENIX CONTACTNon disponibile

SACC-DSI-M12FSS-3P-M16/1,5 PE - Device connector, rear mounting

Device connector, rear mounting, Power, 3-position, Socket, straight, M12, coding: S, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1.5 m, 1.31 mm2, UL/cUL stranded hook-up wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238559
Cod. Articolo: 1162598
Cod. Fornitore: 1162598
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Lock nut is included in the scope of delivery
Contact connection method: Crimp connection
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixContact
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
MountingMounting type: Rear mounting M16 x 1.5 With flat nut
Assembly instructions: With flat nut
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Power
Number of positions: 3
No. of cable outlets: 1
Shielded: no
Coding: S
Thread type: M12
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA
Material for screw connection: CuZn alloy, nickel-plated
Conductor material: Bare Cu litz wires
Electrical propertiesRated voltage in acc. with IEC 61076-2-101: 630 V
Rated surge voltage: 6 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 630 V
Nominal current IN: 16 A
Test voltage: 6 kV
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Socket
Conductor cross section: 1.31 mm²
Tightening torque: 3 Nm
4 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Coding: S
Connection 2
Head design: free cable end
Cable/lineCable length: 1.5 m
Cable type: UL/cUL stranded hook-up wire
Signal type/category: Power
Wire diameter incl. insulation: 2.2 mm
Single wire, color: black 1, black 2, green/yellow
Cable cross section: 1.31 mm²
Conductor material: Bare Cu litz wires
AWG signal line: 16
Material wire insulation: mPPE
Halogen-free: yes
Flame resistance: in acc. to UL1581 VW1
Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation)
-20°C ... 105°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP65
IP67
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-20°C ... 105°C (Cable, flexible installation)
-40°C ... 105°C (cable, fixed installation)
Standards and regulationsFlame resistance: in acc. to UL1581 VW1
M12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-111
Note: In line with
