SACC-E-M12MSB-5CON-M20/0,5 - Device connector front mounting

Device connector front mounting, Pin, straight, M12, coding: B, on free cable end, Front mounting, M20 x 1,5, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238516

Cod. Articolo: 1147729 Copia - Copy

Cod. Fornitore: 1147729 Copia - Copy

PHOENIX CONTACT

Notes	General: Contact connection method: Crimp connection
Mounting	Mounting type: Front mounting M20 x 1,5
Product properties	Product type: Circular connectors (device side) No. of cable outlets: 1 Shielded: no Coding: B Thread type: M12
Material specifications	Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Conductor material: Tin-plated Cu litz wires
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 3 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Max. conductor resistance: 57.6 mÃ©/m
Connection data	Conductor connection Connection method: Individual wires Contact connection type: Pin Conductor cross section: 0.34 mm²
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Connector	Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Coding: B Connection 2 Head design: free cable end
Cable/line	Cable length: 0.5 m Cable type: TPE litz wire Wire diameter incl. insulation: 1.2 mm Ã±0.07 mm Single wire, color: brown, white, blue, black, gray Cable cross section: 0.34 mm² Conductor material: Tin-plated Cu litz wires Conductor structure signal line: 7x 0.25 mm AWG signal line: 22 Material wire insulation: TPE Thickness, insulation: 0.21 mm Nominal voltage, cable: 300 V Test voltage, cable: 2000 V AC Cable resistance: Ã¢Ã¢°¤ 57.6 mÃ©/m Cable insulation resistance: Ã¢Ã¢°¥ 20 MÃ©*km

Accedi ai servizi

Entra nella tua area riservata

Accedi ai servizi

SACC-E-M12MSB-5CON-M20/0,5 - Device connector front mounting

Altri prodotti correlati

SACC-BP-F-M12/M15-6-THR SCO - Housing screw connection
Cod. Articolo: 1414020

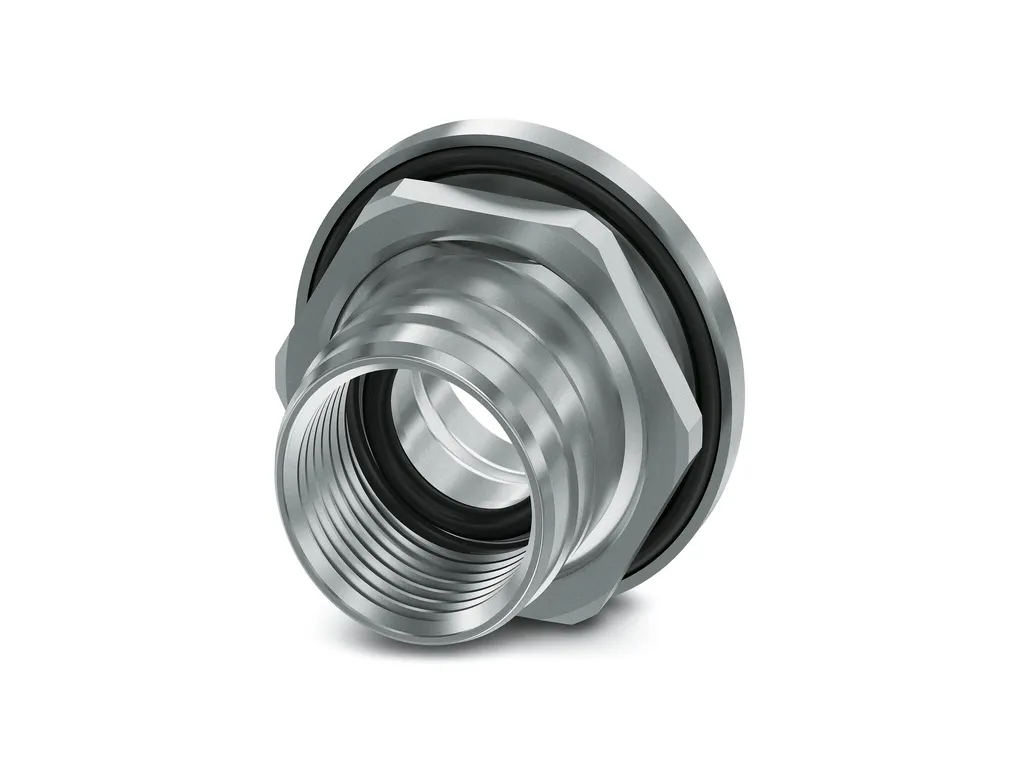

SACC-BP-F-M12-THR PP - Housing screw connection
