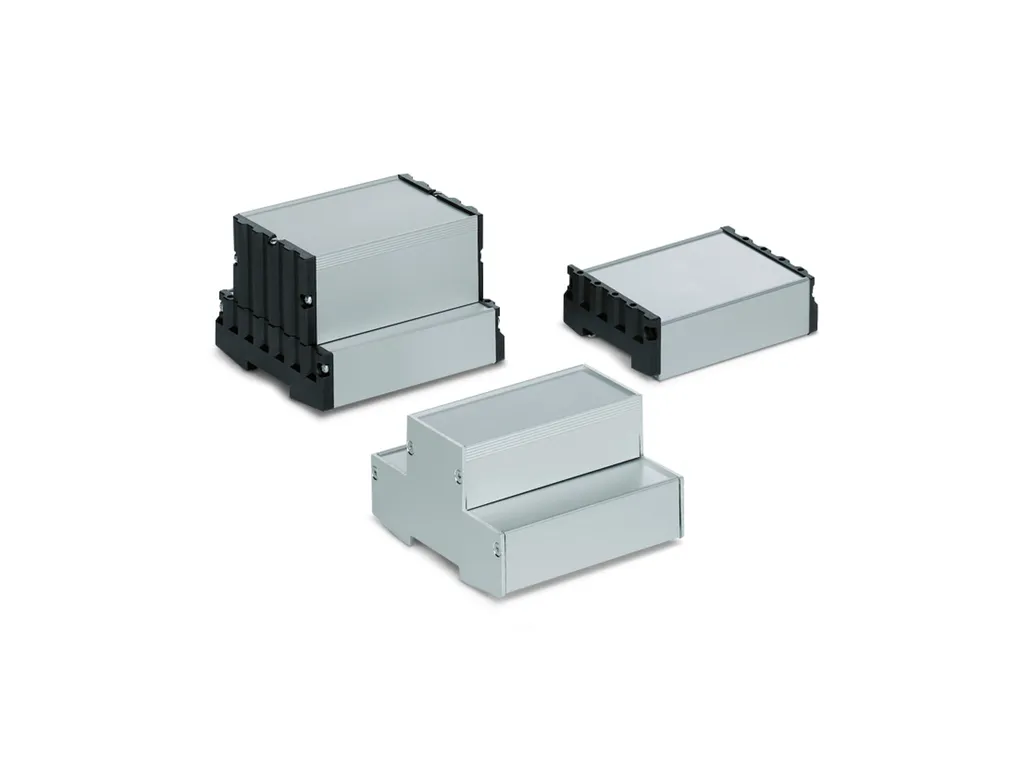

| Product properties | Product type: Component housing lower part Product family: UM-ALU 4-100,5 Type: Basic profile Housing type: Press-drawn section housings Ventilation openings present: no Housing series: UM-ALU |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b8cf85bcb2f31340aa65c65c663d9579/-S204x204-FJPG Depth: 29.4 mm Depth from top edge of DIN rail: 25.5 mm Length: 80 mm External dimensions Profile width (external): 105 mm Internal dimensions Profile width (internal): 100.5 mm PCB design PCB thickness: 1.44 mm ... 2 mm |
| Material specifications | Color: aluminum color Color (Housing): aluminum Surface characteristics: anodized Housing material: Aluminum |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP40 Ambient temperature (operation): -40°C ... 105°C |
| PCB data | Number of PCB holders: 2 Type of PCB mount: Slot Thickness of the PCB: 1.44 mm ... 2 mm |
| Mounting | Mounting type: Screw mounting Mounting position: parallel to the DIN rail |
| Packaging specifications | Type of packaging: packed in cardboard Outer packaging type: Carton |
