EV-T1G2CC-DC200A-25FT1ASBK11 - DC charging cable

CHARX connect standard, DC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with direct current (DC), with charging connector holder, with analog temperature sensors, CCS type1, SAEJ1772, IEC 62196-3, 200 A / 1000 V (DC), PHOENIXCONTACT logo, cable: 25 ft, black, straight, NOTE: Cable management may be required.
Cod. Articolo: 1101121
Cod. Fornitore: 1101121
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Download
Caratteristiche Tecniche
Product propertiesProduct type: DC charging cable
Product family: CHARX connect standard
Application: for charging electric vehicles (EV) with direct current (DC)
for installation at charging stations for electromobility (EVSE)
Type: DC charging cable
with vehicle charging connector and open cable end
Design: with charging connector holder
with analog temperature sensors
Technology: Combined Charging System
Affixed logo: PHOENIXCONTACT logo
Label: 8.9mm x 28.9mm (customer logo on request)
Charging standard: CCS type1
Charging mode: Mode 4
DClevel2
Electrical propertiesType of signal transmission: Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121
Note on the connection method: Crimp connection, cannot be disconnected
Coding: 480Ω (Lever actuated)
150Ω (Lever not actuated)
Temperature monitoring: 2x Pt 1000
Type of charging current: DC
DC Boost Mode
Charging power: 200 kW
up to 500 kW (Boost Mode, depending on the ambient conditions. For detailed information, see the packing slip in the download area for this item.)
Charging current: 200 A
up to 500 A (Boost Mode, depending on the ambient conditions. For detailed information, see the packing slip in the download area for this item.)
Power contact
Number: 3 (PE, DC+, DC-)
Rated voltage: 1000 VDC
Rated current: 200 A (up to 40°C)
Signal contact
Number: 2 (CP, CS)
Rated voltage: 30 VAC
Rated current: 2 A
Temperature sensors (Pt1000)
Sensor type: Pt 1000
Standards/regulations: DINEN60751
Attachment point: Sensor for the DC contacts
Switch-off temperature: 90°C ±1K (equivalent to a Pt 1000 value of 1346.5 Ω)
Long-term stability: 0.06 % (after 1000hours at 130°C)
Recommended measured current: 1 mA (1 V at 0°C)
Coefficient: 3850ppm/K
Ambient temperature: -50°C ... 130°C (Operation)

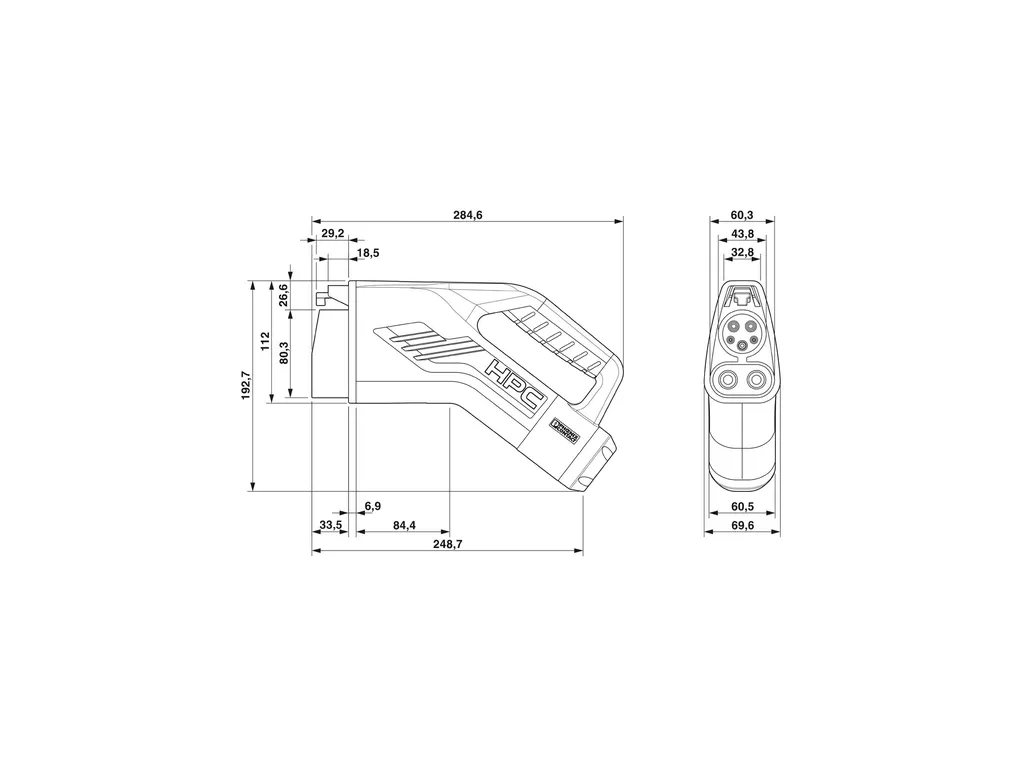

DimensionsVehicle charging connector
Width: 69.6 mm
Height: 192.6 mm
Depth: 284.6 mm
Material specificationsColor (Housing): black (9005)
Color (Handle area): black (9005)
Color (Mating face): black (9005)
Color (Protective cap): black (9005)
Color (Cable): black (9005)
Material (Vehicle charging connector): Plastic
Material (Cable outer sheath): TPE
Material (Contact surface): Silver
Flammability rating according to UL 94: V0 (Mating face)
Cable/lineCable length: 25 ft ±45mm
Wiring standards/regulations: UL62
FFSO7.E343212
Cable weight: max. 1900 kg/km
Cable type: straight
Cable structure: 2 x 1 AWG + 1 x 3 AWG + 3 x 2 x 18 AWG
External cable diameter: 35.3 mm ±0.5 mm
Outer sheath, material: TPE
Stripping length of the sheath: 180 mm ±10mm
Cable resistance: ≤ 0.00044 Ω/m (based on a power core, at an ambient temperature of 20°C)
Bending radius: min. 529.5 mm (15x diameter)
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 10000
Insertion force: < 75 N
Withdrawal force: < 75 N
Environmental and real-life conditionsAmbient conditions
Degree of protection (Vehicle charging connector): IP54 / Type3R (The degree of protection is only ensured in the ready and plugged-in state when both plug-in components are original products from Phoenix Contact or suitable standard-compliant products.)
Ambient temperature (operation): -30°C ... 40°C
max. 55°C (Current reduction required, observe the DC contact temperature limit value of90°C)
Ambient temperature (storage/transport): -40°C ... 80°C
Altitude: 5000 m (above sea level)
Standards and regulationsConnection in accordance with standard
Normative cable length restrictions: NOTE: Cable management may be required.
Cable management is required in the US if the cable length exceeds 7.5m (IEC 61851-1).
Standards
Standards/regulations: SAEJ1772
IEC 62196-3
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Application_note_00009.pdf

Manufacturer_declaration_04042.pdf

Manufacturer_declaration_04043.pdf

Manufacturer_declaration_06395.pdf

Package_slip_01043.pdf
