CLT-20P/4-VF-230V-I-P - Surge protection plug

Surge protection plug, directly pluggable on 4 terminal blocks, with integrated status indicator on the module for a 4-wire floating signal circuit with high nominal current. Nominal voltage: 230VAC

Cod. Articolo: 1088567 Copia - Copy

Cod. Fornitore: 1088567 Copia - Copy

PHOENIX CONTACT

Product properties	IEC test classification: C1 C2 C3 D1 Type: DIN rail module, two-section, divisible Product type: Surge protection for MCR technology Product family: CLIXTRAB Insulation characteristics Overvoltage category: III Pollution degree: 2
Electrical properties	Nominal voltage U_N: 240 VÃAC
Connection data	Connection method: pluggable

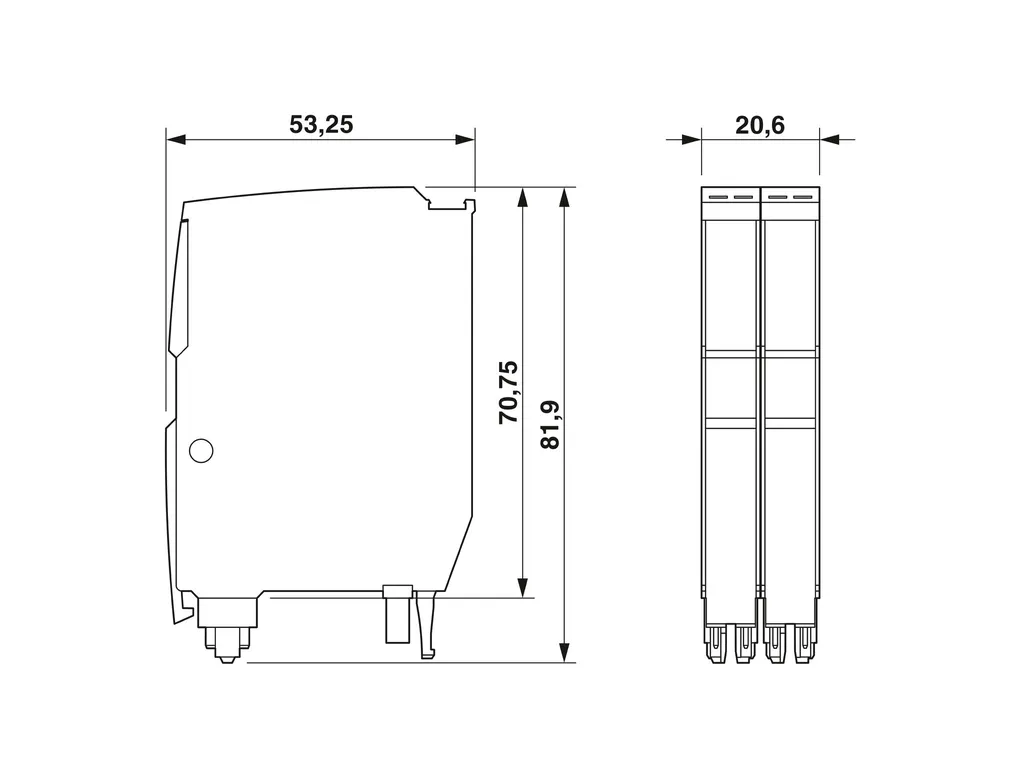

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3ccbd4d11b6cf6498baac48524e25047/-S204x204-FJPG Width: 20.6 mm Height: 53.25 mm Depth: 81.9 mm
Material specifications	Flammability rating according to UL 94: V-0 Insulating material: PA 6.6+GV 20 % Housing material: PA 6.6+GV 20Ã%
Mechanical properties	Mechanical data Open side panel: No
Protective circuit	Direction of action: Line-Earth Ground Maximum continuous voltage U_C: 230 VÃDC 264 VÃAC Rated current: 10 A AC (80Ã°CÃ/Ã10ÃA ACÃC) 6 AÃDC (80Ã°CÃ/Ã6,3ÃA DCÃF) 10 AÃDC (80Ã°CÃ/Ã10ÃA DCÃD01ÃgR) Operating effective current I_C at U_C: Ã¢Ã¢°¤ 1 ÃµA Residual current I_PE: Ã¢Ã¢°¤ 4 ÃµA Total discharge current I_total (8/20)ÃÃµs: 12 kA Voltage protection level U_p (line-earth): Ã¢Ã¢°¤ 1.4 kV (C1 - 1,5 kV / 750 A) Ã¢Ã¢°¤ 1.4 kV (C2 - 6ÃkVÃ/Ã3ÃkA) Ã¢Ã¢°¤ 1.5 kV (C3 - 50ÃA) Response time t_A (line-earth): Ã¢Ã¢°¤ 100 ns Input attenuation aE, asym.: typ. 0.3 dB (Ã¢Ã¢°¤Ã60ÃMHz / 150ÃÃ©) Cut-off frequency fg (3ÃdB), asym. (signal ground) in 150ÃÃ© system: typ. 60 MHz Capacity (line-signalground): typ. 20 pF Surge protection fault message: optical Max. required back-up fuse: 10 A AC (C) 6.3 AÃDC (F) 10 AÃDC (D01ÃgR) Impulse durability (line-earth): C1 - 1,5ÃkV / 750ÃA C2 - 6ÃkV / 3ÃkA C3 - 50ÃA D1 - 500ÃA Pulse reset time (line-earth): Ã¢Ã¢°¤ 30Ãms
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: Ã¢Ã¢°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 5g (Half-sine / 11 ms / 3x Ã±X, Ã±Y, Ã±Z) 10g (Half-sine / 8Ãms / 3x Ã±X, Ã±Y, Ã±Z) 5g (Half-sine / 30Ãms / 3x Ã±X, Ã±Y, Ã±Z) Vibration (operation): 0,58g (5 ... 150ÃHz / 5Ãh / X, Y, Z) 1g (5 ... 2000ÃHz / 5Ãh / X, Y, Z)
Standards and regulations	Standards/specifications: IEC 61643-21 ENÃ61643-21 Note: 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 2001 + A1:2009 + A2:2013
Mounting	Mounting type: on base element
