| Notes | General Note: For use in all low-voltage systems between L-PEN. Only for use in IT systems between L-PE if the bodies of the equipment in the low-voltage system are connected to the grounding system of the transformer station. (common grounding of the HV transformer station and the bodies of the LV consumer's installation. RE = RA according to IEC 60364-4-442/VDE 0100-442 Figure 44D/example a) A maximum backup fuse (with branch line wiring) of F=250 A gG can be used for systems with a prospective short-circuit current of between 3 kA to 50 kA. |

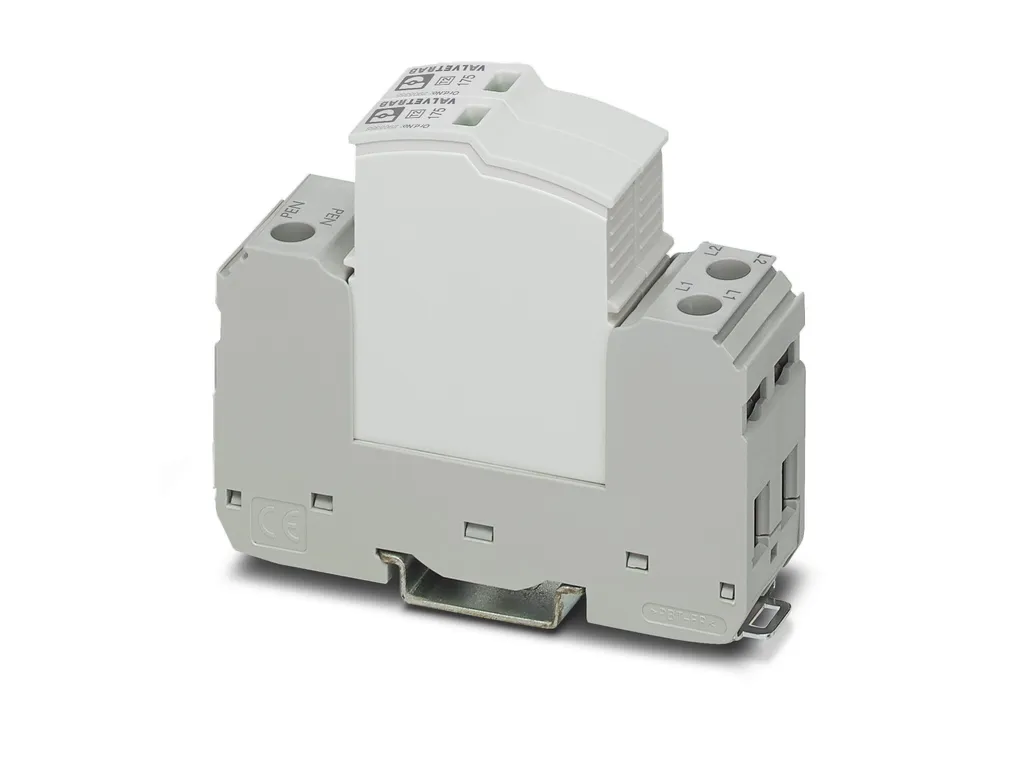

| Product properties | IEC test classification: II T2 EN type: T2 IEC power supply system: TN IT Type: Male Distance between live and grounded parts: 8 mm Product type: Replacement plug Product family: VALVETRAB MS Number of positions: 1 Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2 |
| Electrical properties | Nominal frequency fN: 50 Hz (60ÃHz) |
| Connection data | Connection method: pluggable |

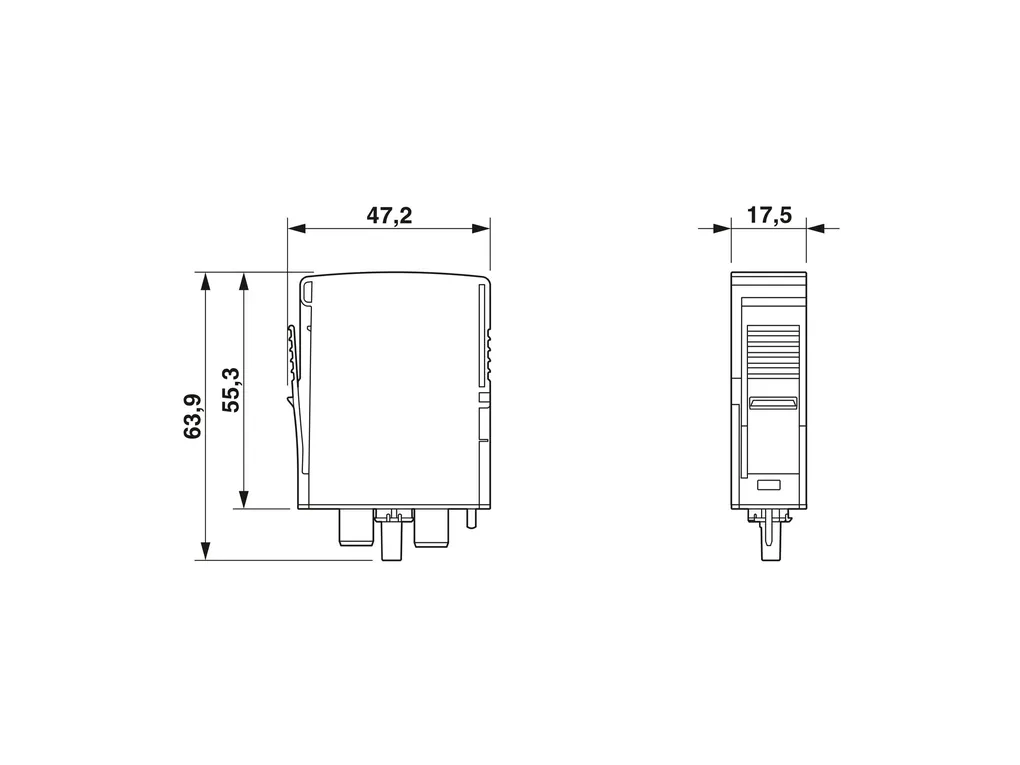

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/244085b8304de74e95f3135ca62ba23a/-S204x204-FJPG Width: 17.5 mm Height: 52.4 mm Depth: 55.3 mm Horizontal pitch: 1 Div. |
| Material specifications | Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PA 6.6 Material group: I Housing material: PA 6.6 |
| Protective circuit | Mode of protection: L-PE (IT) L-PEN (TN-C) Direction of action: 1L-N/PE Nominal voltage UN: 554/960ÃVÃAC (TN) 690ÃVÃAC (IT) Nominal frequency fN: 50 Hz (60ÃHz) Maximum continuous voltage UC: 760 VÃAC Residual current IPE: ââ°¤ 0.5 mA Standby power consumption PC: ââ°¤ 400 mVA Nominal discharge current In (8/20) õs: 20 kA Maximum discharge current Imax (8/20) õs: 30 kA Short-circuit current rating ISCCR: 25 kA Voltage protection level Up: ââ°¤ 2.9 kV TOV behavior at UT: 1005 VÃAC (5Ãs / withstand mode) 1056 VÃAC (120Ãmin / safe failure mode) Response time tA: ââ°¤ 25 ns Max. backup fuse with branch wiring: 200 A (gG) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 85°C Ambient temperature (storage/transport): -40°C ... 85°C Altitude: ââ°¤ 2000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 25g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Approvals | UL specifications Maximum continuous operating voltage MCOV (L-N): 750 VÃAC Nominal discharge current In (L-N): 20 kA Mode of protection: L-N Nominal voltage: 690ÃVÃAC Power distribution system: Single phase Nominal frequency: 50/60 Hz Measured limiting voltage MLV (L-N): 3040 V SPD Type: 4CA |
| Standards and regulations | Standards/specifications: IEC 61643-11 ENÃ61643-11 Note: 2011 2012 |
| Mounting | Mounting type: on base element |
