| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Lock nut is included in the scope of delivery Push-pull external locking |
| Mounting | Mounting type: Rear mounting M16 With flat nut Assembly instructions: With flat nut Connection method: Wave soldering |
| Product properties | Product type: Circular connectors (device side) Number of positions: 5 Shielded: no Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |

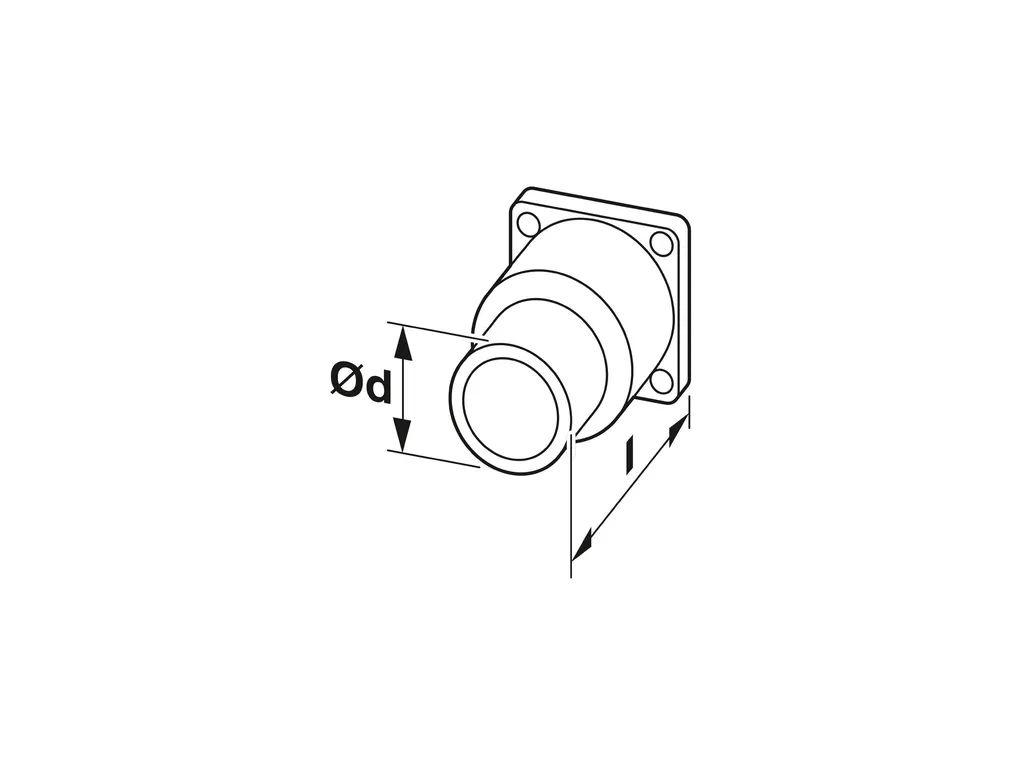

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9d11c5e183e47441b782fd1dd21a9541/-S204x204-FJPG Length of the solder pin: 6 mm |
| Material specifications | Material: Brass, nickel-plated Flammability rating according to UL 94: V0 Seal material: NBR/FKM Material of grip body: Brass, nickel-plated Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Brass, nickel-plated |
| Electrical properties | Rated surge voltage: 1.5 kV Nominal voltage UN: 60 V Nominal current IN: 4 A |
| Connection data | Conductor connection Connection method: Wave soldering Contact connection type: Socket |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: > 100 |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Head locking type: Push-Pull Coding: A |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 IP65/IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-010 Note: Push-pull (type2) |
