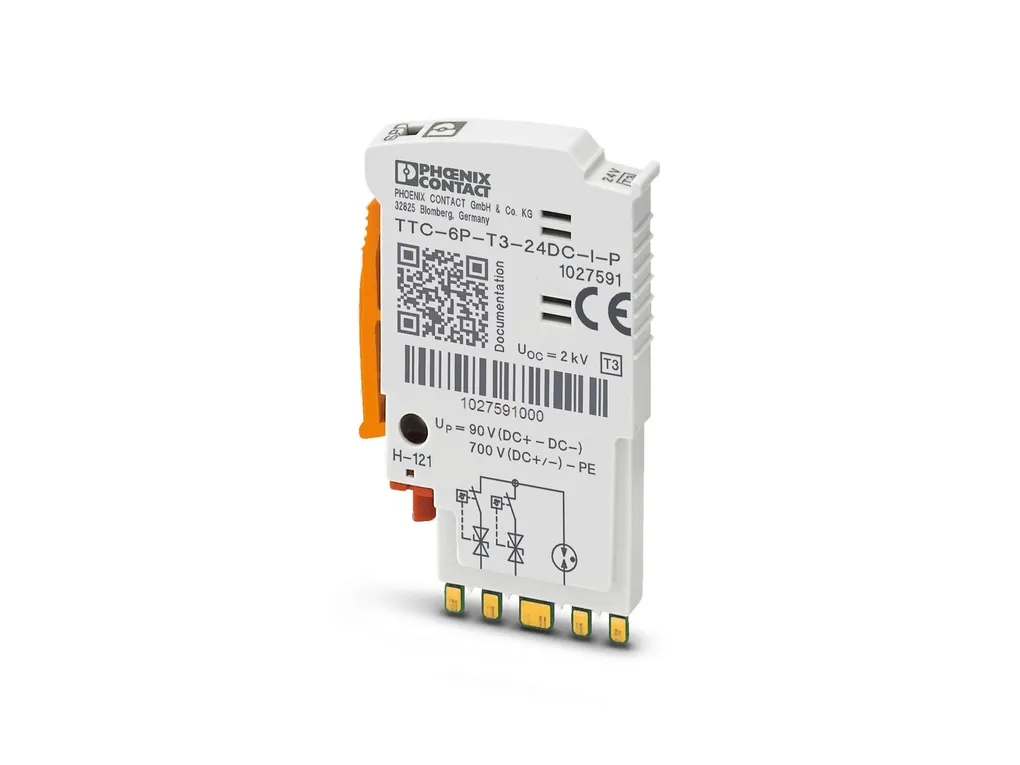

TTC-6P-T3-24DC-I-P - Type 3 surge protection plug

Replacement plug for type 3 surge protection from the TERMITRAB complete T3 product series. Nominal voltage 24 V.

Cod. Articolo: 1027591 Copia - Copy

Cod. Fornitore: 1027591 Copia - Copy

PHOENIX CONTACT

Notes	General Note: CBM: 2905743ÃCBM E4 24DC/0.5-10A NO-R 2905744ÃCBM E8 24DC/0.5-10A NO-R CBMC: 2906032ÃCBMC E4 24DC/1-10A NO 2908716ÃCBMC E4 24DC/1-10A NO-C 2910411ÃCBMC E4 24DC/1-10A IOL PTCB: 2908262ÃPTCB E1 24DC/1-8A NO CB E1: 2800907ÃCB E1 24DC/10A NO P 2800914ÃCB E1 24DC/10A S-R P 2800928ÃCB E1 24DC/10A S-C P 2905805ÃCB E1 24DC/10A SI-R P 2905812ÃCB E1 24DC/10A SI-C P
Product properties	IEC power supply system: DC Type: Male Product type: Replacement plug Product family: TERMITRAB complete Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2 IEC test classification: III T3 EN type: T3 Number of ports: One
Connection data	Connection method: pluggable

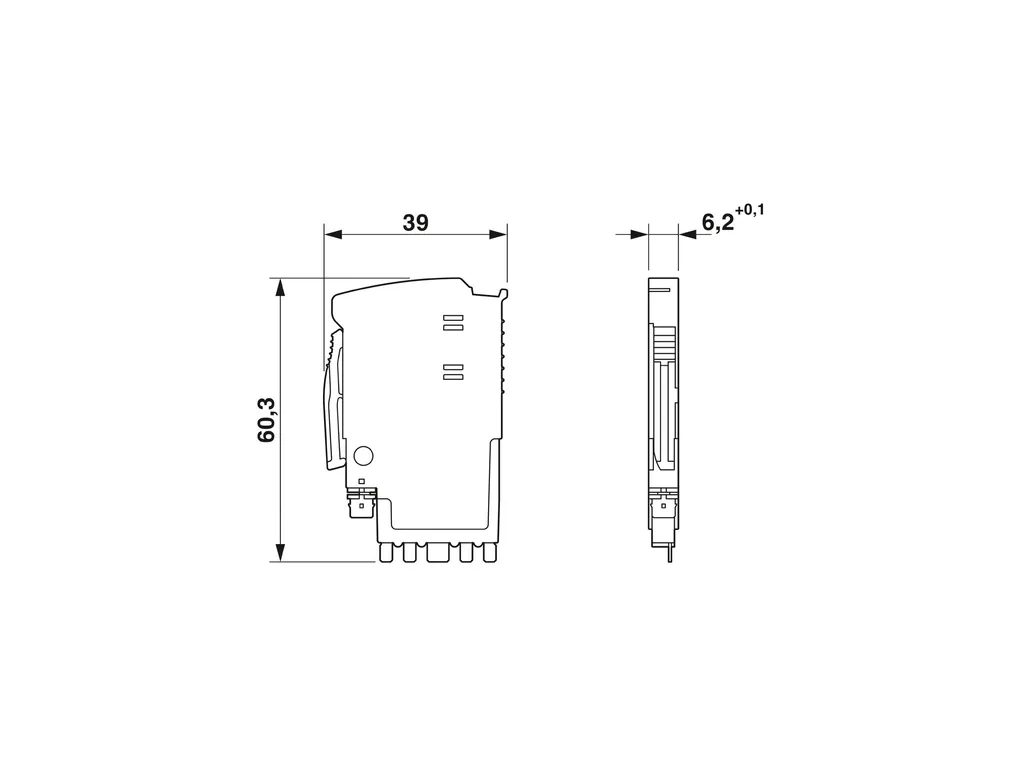

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/72506de348af114582e6e234e5697d3c/-S204x204-FJPG Width: 6.2 mm +0.1Ãmm Height: 39 mm Depth: 60.3 mm
Material specifications	Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PBT Housing material: PBT
Protective circuit	Mode of protection: (DC+) - (DC-) (DC+/DC-) - PE Direction of action: 1L-N & N-PE Nominal voltage U_N: 24 VÃDC Maximum continuous voltage U_C: 30 VÃDC Residual current I_PE: Ã¢Ã¢°¤ 5 ÃµA Nominal discharge current I_n (8/20) Ãµs: 1 kA Combination wave U_OC: 2 kV (2 Ã©) Voltage protection level U_p (DC+) - (DC-): Ã¢Ã¢°¤ 0.09 kV (U_oc= 2 kV) Ã¢Ã¢°¤ 0.2 kV (U_oc= 6 kV) Voltage protection level U_p (DC+/DC-) - PE: Ã¢Ã¢°¤ 0.7 kV Short-circuit current rating I_SCCR: 60 AÃDC (without additional backup fuse) 220 AÃDC Max. backup fuse with branch wiring: 6 A (gG) 10 A (see the note: CBM, CBMC, PTCB, CB E1)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: Ã¢Ã¢°¤ 6000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 30g (Half-sine / 11 ms / 3x Ã±X, Ã±Y, Ã±Z) Vibration (operation): 5g (10 ... 150 Hz/20 cycles/axis/X, Y, Z)
Standards and regulations	Standards/specifications: IEC 61643-11 Note: 2011 EN 61643-11 Standards/specifications: ENÃ61643-11 Note: 2012
Mounting	Mounting type: on base element
