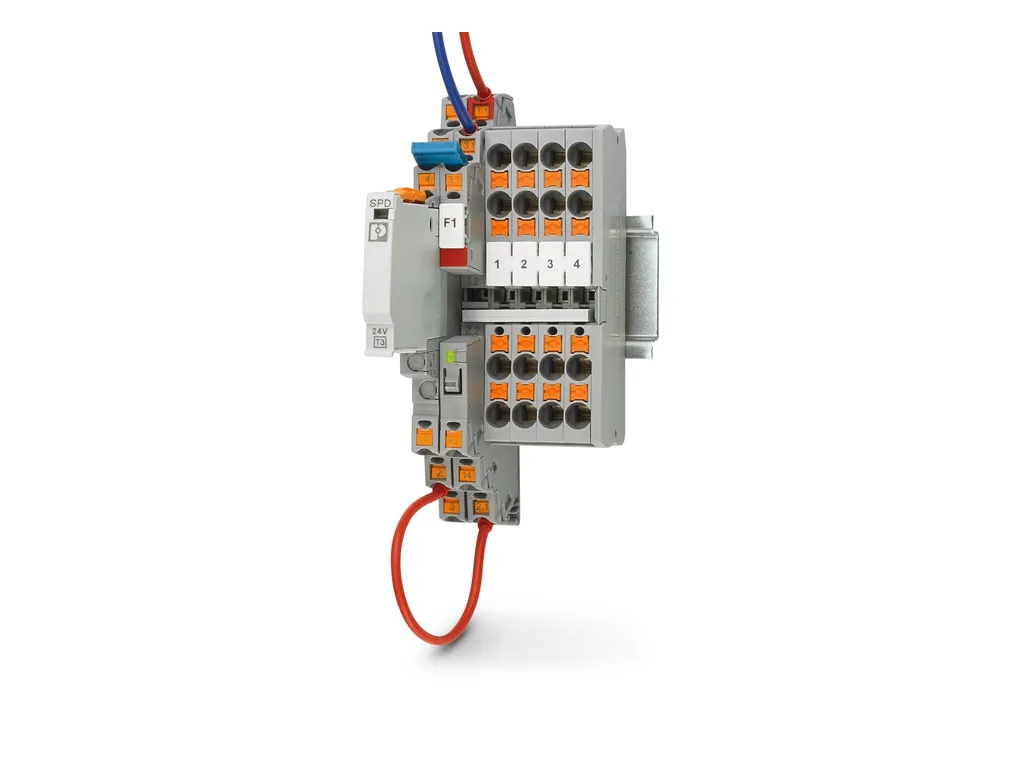

| Notes | General Note: CBM: 2905743ÃCBM E4 24DC/0.5-10A NO-R 2905744ÃCBM E8 24DC/0.5-10A NO-R CBMC: 2906032ÃCBMC E4 24DC/1-10A NO 2908716ÃCBMC E4 24DC/1-10A NO-C 2910411ÃCBMC E4 24DC/1-10A IOL PTCB: 2908262ÃPTCB E1 24DC/1-8A NO CB E1: 2800907ÃCB E1 24DC/10A NO P 2800914ÃCB E1 24DC/10A S-R P 2800928ÃCB E1 24DC/10A S-C P 2905805ÃCB E1 24DC/10A SI-R P 2905812ÃCB E1 24DC/10A SI-C P |
| Product properties | IEC power supply system: DC Type: DIN rail module, two-section, divisible Product type: Device protection Product family: TERMITRAB complete Number of positions: 2 Surge protection fault message: optical Insulation characteristics Overvoltage category: III Pollution degree: 2 IEC test classification: III T3 EN type: T3 Number of ports: One |
| Connection data | Connection method: Push-in connection Conductor cross section flexible: 0.2 mm² ... 2.5 mm² Conductor cross section rigid: 0.2 mm² ... 4 mm² Conductor cross section AWG: 24 ... 12 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/b127379a7f273c4bb57b020c5c3744ea/-S204x204-FJPG Width: 6.2 mm +0.1Ãmm Height: 105.8 mm Depth: 100 mm (incl. DIN rail 7.5Ãmm) |
| Material specifications | Flammability rating according to UL 94: V-0 CTI value of material: 600 Insulating material: PBT Housing material: PBT |
| Protective circuit | Power supplies Direction of action: 1L-N & N-PE Nominal voltage UN: 24 VÃDC Maximum continuous voltage UC: 30 VÃDC Rated load current IL: 6 A (30ðC) Residual current IPE: ââ°¤ 5 õA Nominal discharge current In (8/20) õs: 1 kA Combination wave UOC: 2 kV (2 é) Voltage protection level Up (DC+) - (DC-): ââ°¤ 0.09 kV (Uoc= 2 kV) ââ°¤ 0.2 kV (Uoc= 6 kV) Voltage protection level Up (DC+/DC-) - PE: ââ°¤ 0.7 kV Short-circuit current rating ISCCR: 60 AÃDC (without additional backup fuse) 220 AÃDC Max. backup fuse with branch wiring: 6 A (gG) 10 A (see the note: CBM, CBMC, PTCB, CB E1) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 80°C Ambient temperature (storage/transport): -40°C ... 80°C Altitude: ââ°¤ 6000 m (amsl) Permissible humidity (operation): 5 % ... 95 % Shock (operation): 30g (Half-sine / 11 ms / 3x ñX, ñY, ñZ) Vibration (operation): 5g (10 ... 150 Hz/20 cycles/axis/X, Y, Z) |
| Approvals | Conformity/Approvals UL, USA / Canada: Class I, Div. 2, Groups A, B, C, D T4A |
| Standards and regulations | Standards/specifications: IEC 61643-11 Note: 2011 EN 61643-11 Standards/specifications: ENÃ61643-11 Note: 2012 |
| Mounting | Mounting type: DIN rail: TH 35 - 7.5 mm |
