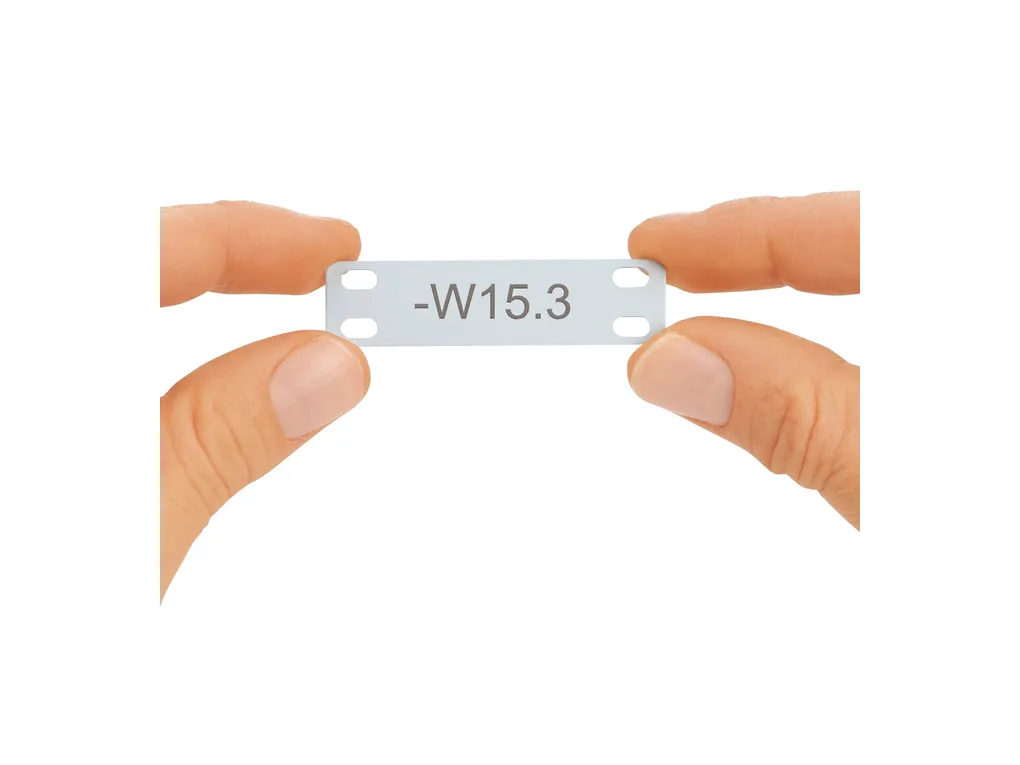

| Product properties | Type: Rectangle Laser sheet Product type: Conductor marking Marking Number of individual labels: 36 Identification technology: Direct laser marking |
| Dimensions | Width: 8.5 mm Length: 47 mm Material strength: 0.80 mm External dimensions Outside diameter: 2.9 mm ... 136 mm |
| Material specifications | RoHS compliant: yes Color: aluminum color Material: Aluminum Components: free from silicone, halogen, and cadmium |
| Cable/line | External cable diameter: > 2.9 mm |
| Environmental and real-life conditions | Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISO4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Weathering-resistance Specification: ISO4892-2:2013-03 (following) IEC 60068-1:1988-00 IEC 60068-1:1988-00 Result: Test passed Test duration: 500 h Procedure: A Duration: 72h Temperature for testing: 125°C 30°C Relative humidity: 95 95 % Wipe resistance of inscriptions Specification: DINEN61010-1 (VDE0411-1):2011-07 DINEN62208 (VDE0660-511):2012-06 (in parts) ISO175:2010 (following) DIN EN60464-2 (VDE0360-2):2006-10 (following) Test duration: 168 h Result: Test passed Test liquid: Acetone-water, Ethanol-water, n-hexane-water mixture Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DIN50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINEN60068-2-11:2000-02 Result: Test passed Test duration: 96 h Salt spray testâ Specification: ISO9227:2012-05 Result: Test passed Test duration: 336 h High pressure test Specification: ISO20653:2013-02 Result: Test passed Ambient conditions Ambient temperature (operation): -25°C ... 120°C (At temperatures above 80°C there might be a slight change to the material surface) Recommended storage conditions: 23°C/50% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % Shelf life: 2years |
| Standards and regulations | Wipe resistance: DINEN61010-1 (VDE0411-1) |
| Mounting | Mounting type: Assembly with cable ties |
