Catalogo Prodotti - Technology Bsa

PCB terminal block, nominal current: 15 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, product range: FFKDS(A)/H1, pitch: 5.08 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: FFKDS(A)/H1, pitch: 7.62 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

Device connector, rear mounting, 4-position, PUR, black-gray RAL 7021, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 6.5 m, 0.34 mm², PUR halogen-free black

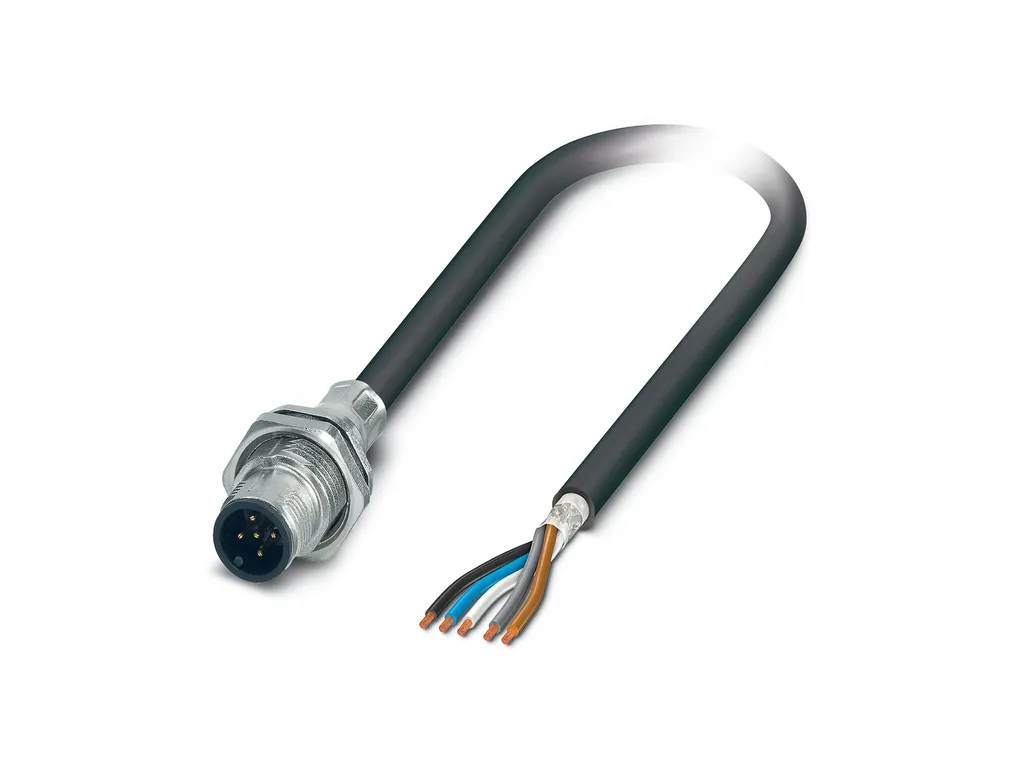

Device connector, rear mounting, 5-position, PUR halogen-free, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 1 m, 0.34 mm², PUR halogen-free black

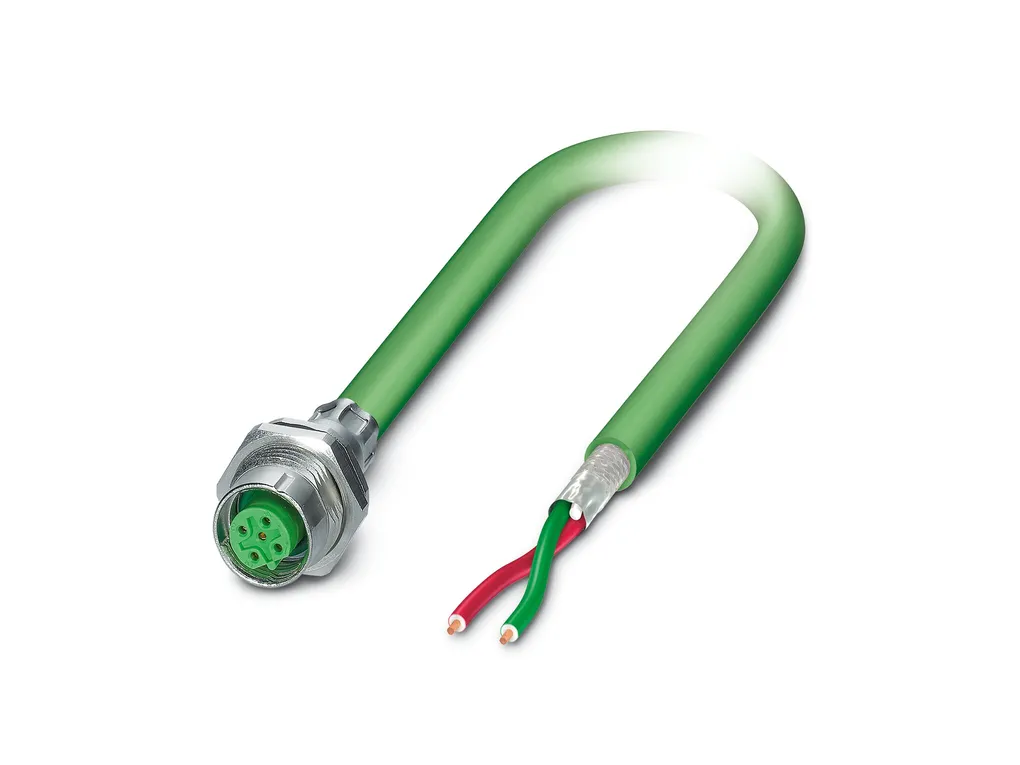

Device connector, rear mounting, PROFIBUS, 2-position, PUR, green RAL 6018, shielded, Pin, straight, M12, coding: B, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.25 mm², PROFIBUS, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1238689

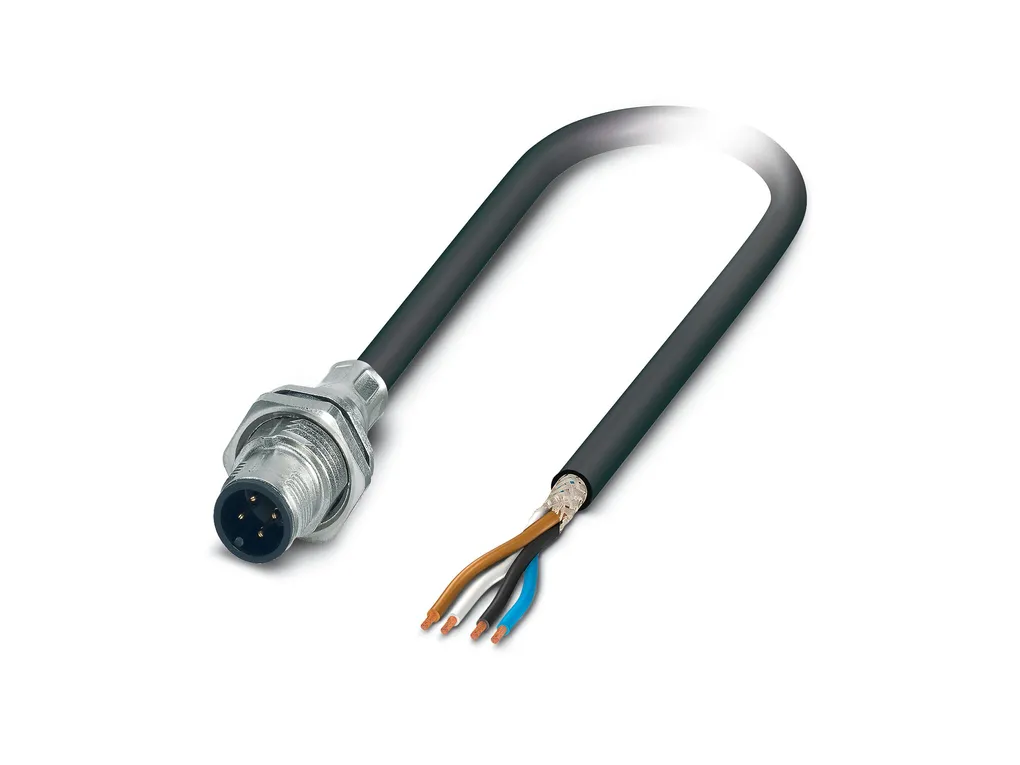

Device connector, rear mounting, Universal, 4-position, PUR, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, PUR halogen-free black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239251

Device connector, rear mounting, Universal, 4-position, PUR, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, PUR halogen-free black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239252

Device connector, rear mounting, Universal, 5-position, PUR halogen-free, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, PUR halogen-free black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239254

Device connector, rear mounting, Universal, 5-position, PUR halogen-free, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, PUR halogen-free black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239255

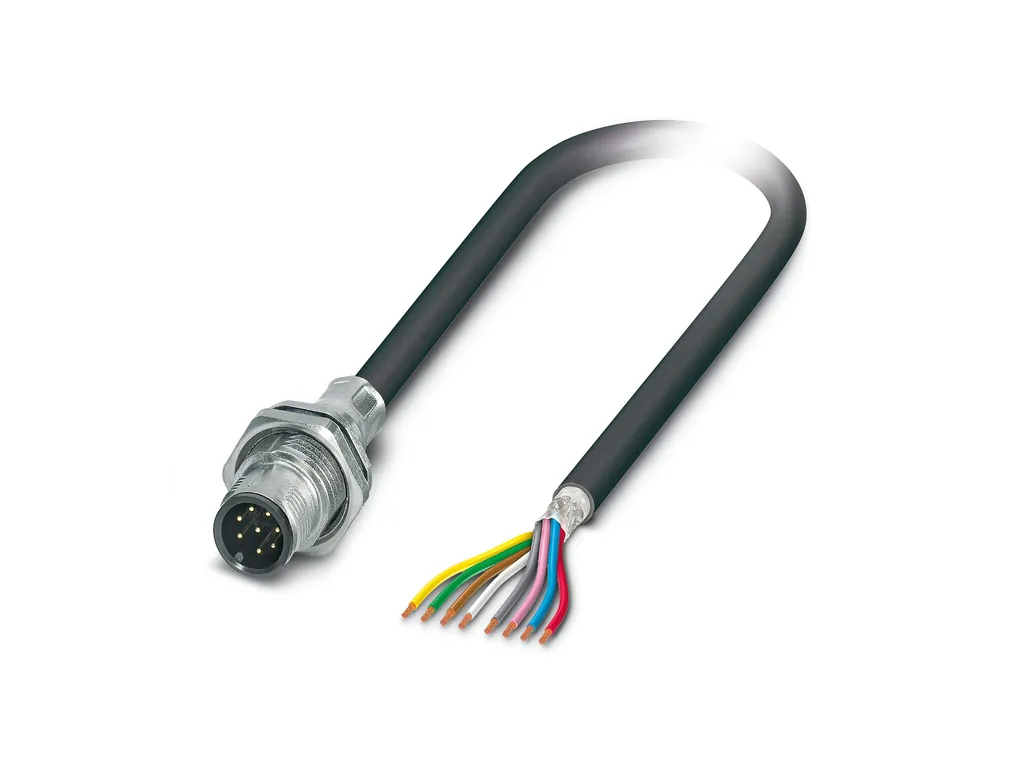

Device connector, rear mounting, Universal, 8-position, PUR halogen-free, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, 0.25 mm², PUR halogen-free black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239256

Device connector, rear mounting, Universal, 8-position, PUR halogen-free, black-gray RAL 7021, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.25 mm², PUR halogen-free black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239257

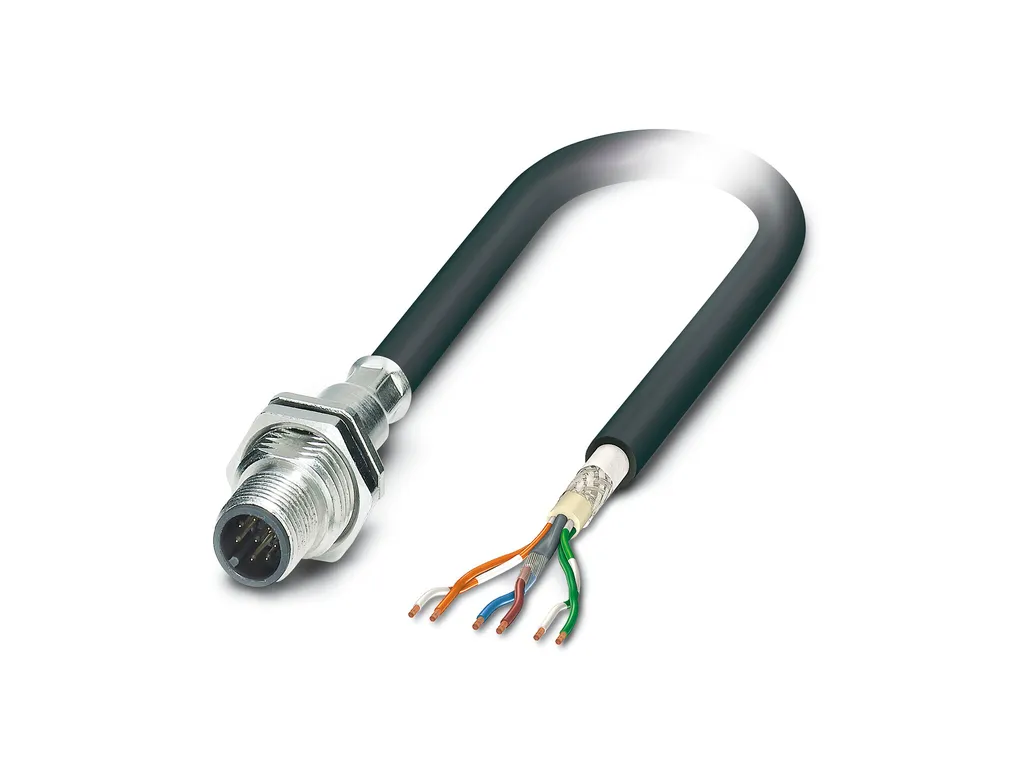

Device connector, rear mounting, Ethernet CAT5 (1 Gbps), 8-position, PUR, water blue RAL5021, Pin, straight, M12, coding: A, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.4 m, 0.14 mm², Ethernet, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239398

Device connector rear mounting, 5-position, Pin, M12-SPEEDCON, coding: A, on free cable end, Rear wall/screw mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, 0.50 mm², Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239404

Device connector, rear mounting, 8-position, SANTOPRENE halogen-free, black RAL9005, shielded, Pin, straight, M12, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, 0.25 mm², Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239591

Device connector, rear mounting, 8-position, SANTOPRENE halogen-free, black RAL9005, shielded, Pin, straight, M12, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, 0.25 mm², Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239592

Device connector, rear mounting, 8-position, SANTOPRENE halogen-free, black RAL9005, shielded, Pin, straight, M12, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.25 mm², Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239593

Device connector, rear mounting, 8-position, SANTOPRENE halogen-free, black RAL9005, shielded, Pin, straight, M12, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 5 m, 0.25 mm², Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239594

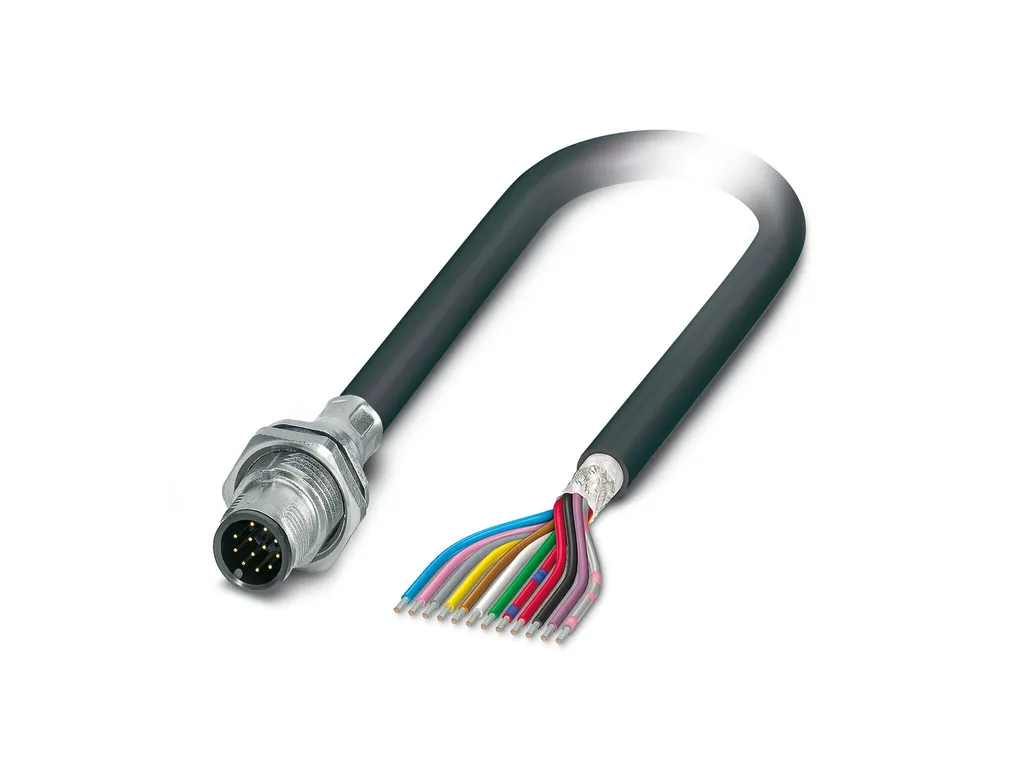

Device connector, rear mounting, Universal, 12-position, PVC/PVC, black RAL9005, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, 0.14 mm², PVC black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239767

Device connector, rear mounting, Universal, 12-position, PVC/PVC, black RAL9005, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.14 mm², PVC black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239768

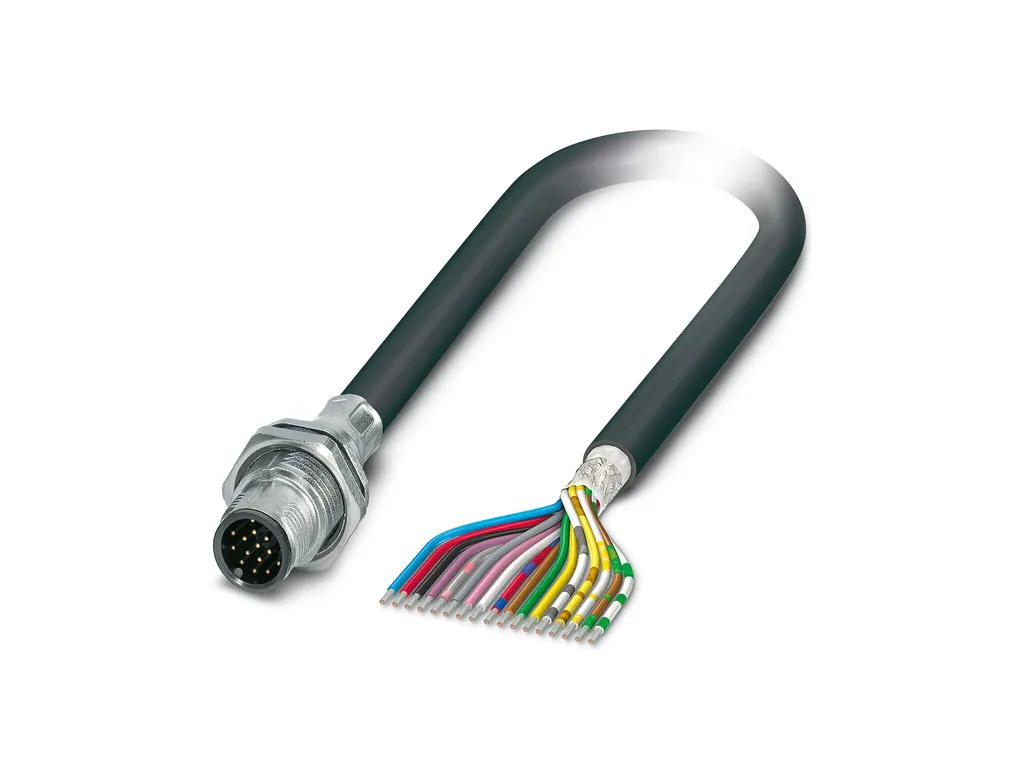

Device connector, rear mounting, Universal, 17-position, PVC/PVC, black RAL9005, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 1 m, 0.14 mm², PVC black, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239771
