Catalogo Prodotti - Technology Bsa

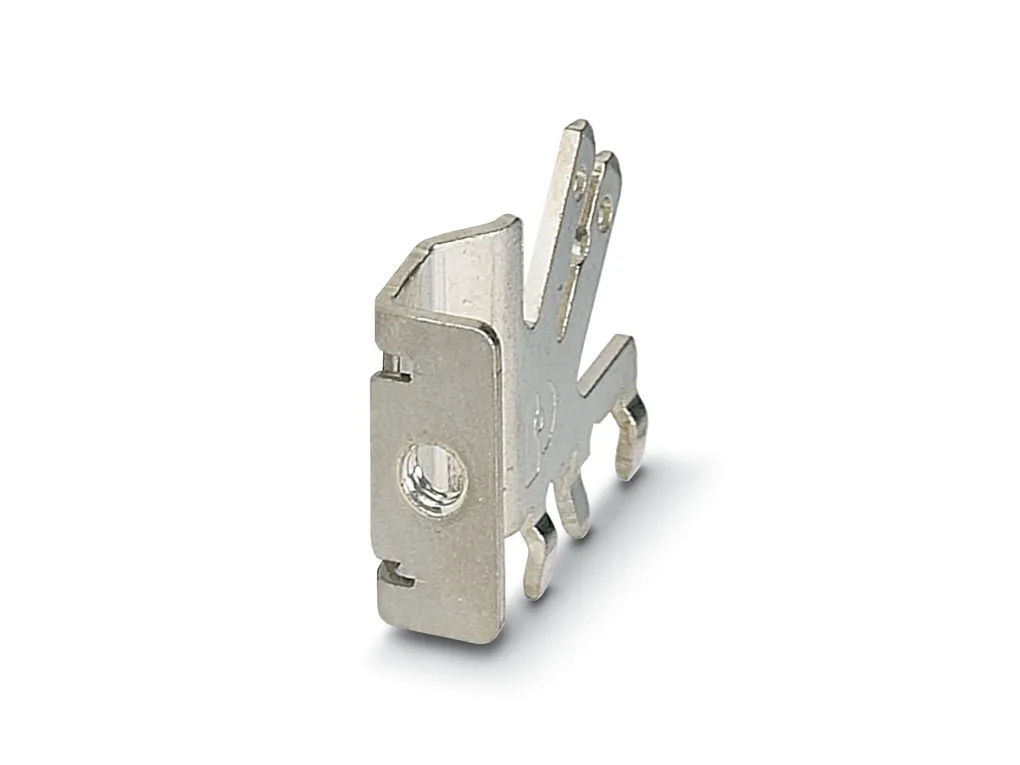

Shroud, Shield connection, product range: EMV-SCHIRMUNG, width: 38.4 mm

Shroud, Shield connection, product range: EMV-SCHIRMUNG, width: 46 mm

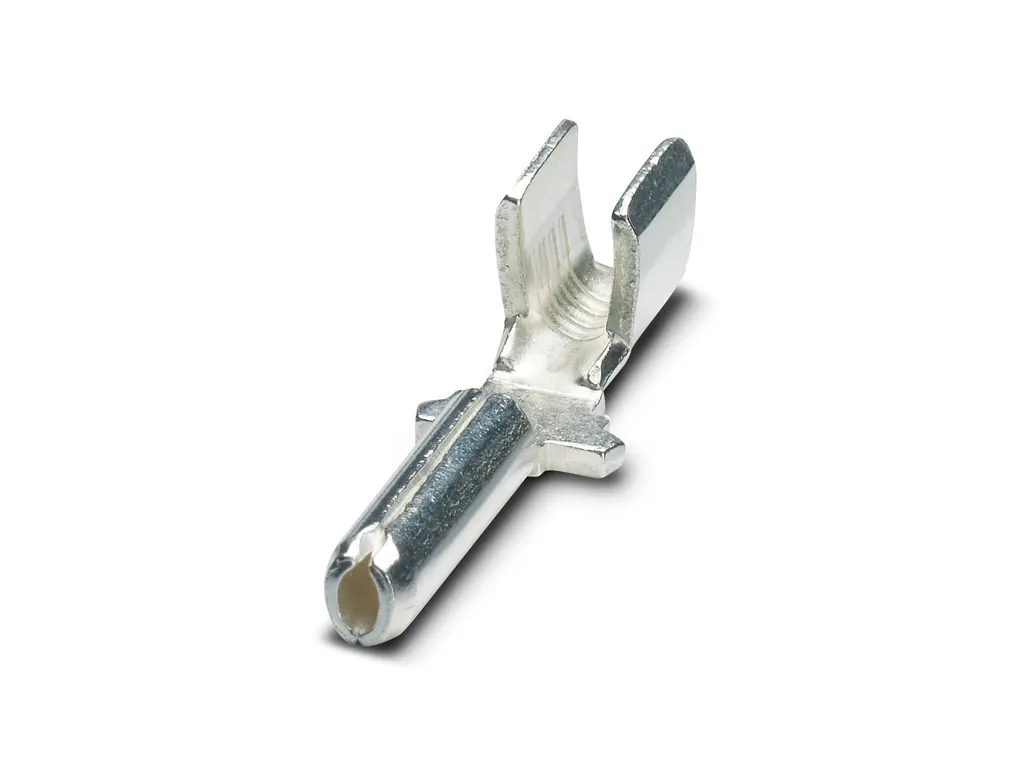

Single crimp pin contact for flexible cable with 6 and 10mm² cross section.

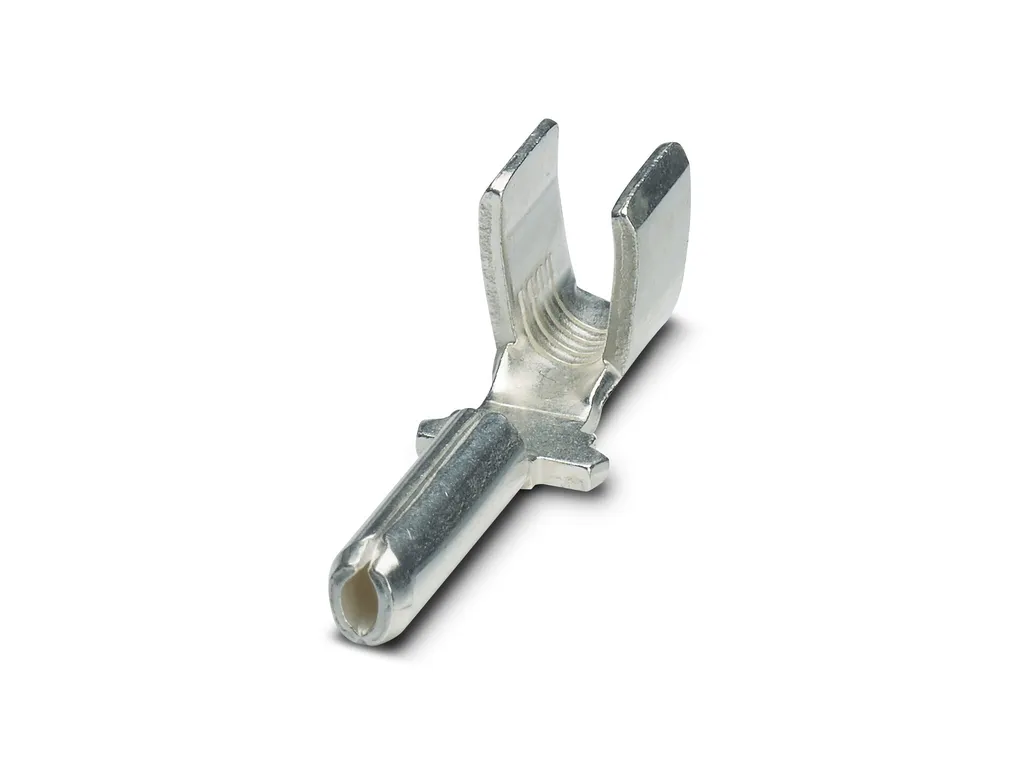

Single crimp pin contact for flexible cable with 4mm² cross section.

Shroud, Accessories, contact surface: Tin, product range: EMV-SCHIRMUNG

Screw set for DFK-PC 16... connectors

Mounting flange, for mounting directly on the wall

Mounting flange, is snapped onto the left and right of the headers, for screw connection with PC 4/...-STF-7.62

Flange, Mounting flange, color: gray, product range: BF BEFESTIGUNGSFLANSCHE

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: MKDSN 1,5, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: GSMKDSN 1,5, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 45°, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: GSMKDSN 1,5, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 45°, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!
