Name: Technology BSA
Address: IT

QTTCB 1,5-PE - Protective conductor double-level terminal block

Non disponibile

Protective conductor double-level terminal block, number of connections: 4, connection method: Quick connection, 1st and 2nd level, cross section: 0.25 mm²-1.5 mm², mounting type: NS 35/7,5, NS35/15, color: green-yellow

Cod. Articolo:3205132 Copia - Copy

Cod. Fornitore: 3205132 Copia - Copy

PHOENIX CONTACT

QTC 2,5-PE - Ground terminal

Non disponibile

Ground terminal, number of connections: 2, number of positions: 1, connection method: Quick connection, 1 level, cross section: 0.5 mm²-2.5 mm², mounting type: NS 35/7,5, NS35/15, color: green-yellow

Cod. Articolo:3206432 Copia - Copy

Cod. Fornitore: 3206432 Copia - Copy

PHOENIX CONTACT

QTC 1,5-TWIN-PE - Ground terminal

Non disponibile

Ground terminal, number of connections: 3, connection method: Quick connection, 1 level, cross section: 0.25 mm²-1.5 mm², mounting type: NS 35/7,5, NS 35/7,5, color: green-yellow

Cod. Articolo:3205064 Copia - Copy

Cod. Fornitore: 3205064 Copia - Copy

PHOENIX CONTACT

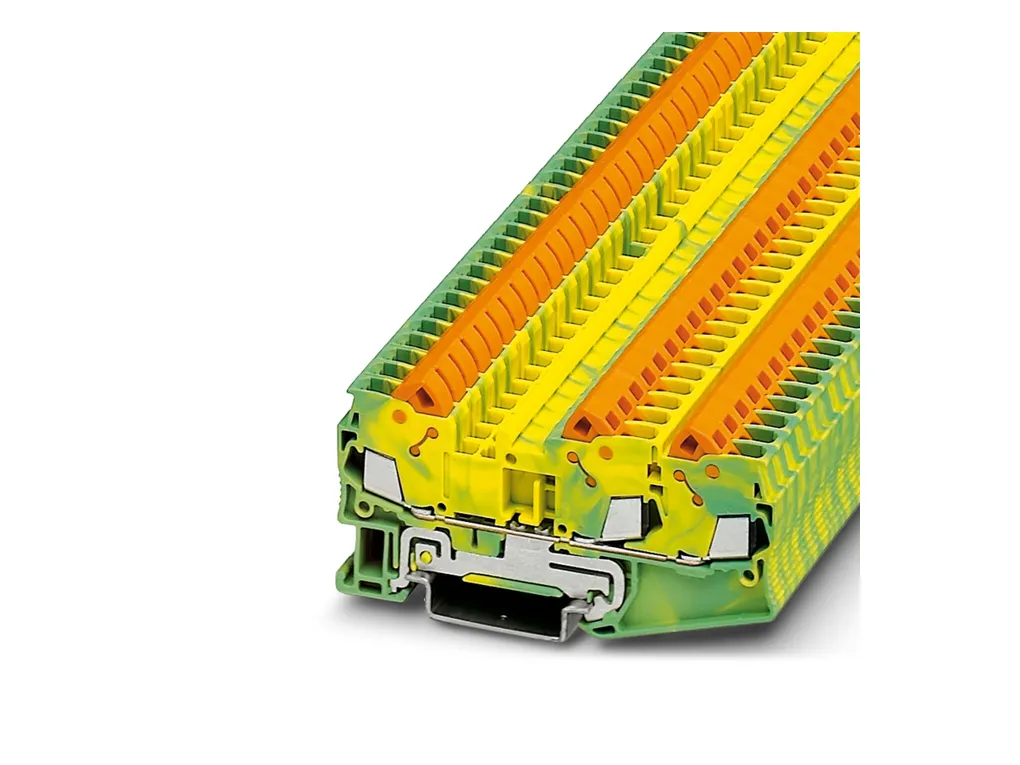

QTC 2,5-TWIN-PE - Ground terminal

Non disponibile

Ground terminal, number of connections: 3, connection method: Quick connection, cross section: 0.5 mm²-2.5 mm², mounting type: NS 35/7,5, NS 35/7,5, color: green-yellow

Cod. Articolo:3206474 Copia - Copy

Cod. Fornitore: 3206474 Copia - Copy

PHOENIX CONTACT

QTC 1,5-QUATTRO-PE - Ground terminal

Non disponibile

Ground terminal, number of connections: 4, connection method: Quick connection, 1 level, cross section: 0.25 mm²-1.5 mm², mounting type: NS 35/7,5, NS 35/7,5, color: green-yellow

Cod. Articolo:3205093 Copia - Copy

Cod. Fornitore: 3205093 Copia - Copy

PHOENIX CONTACT

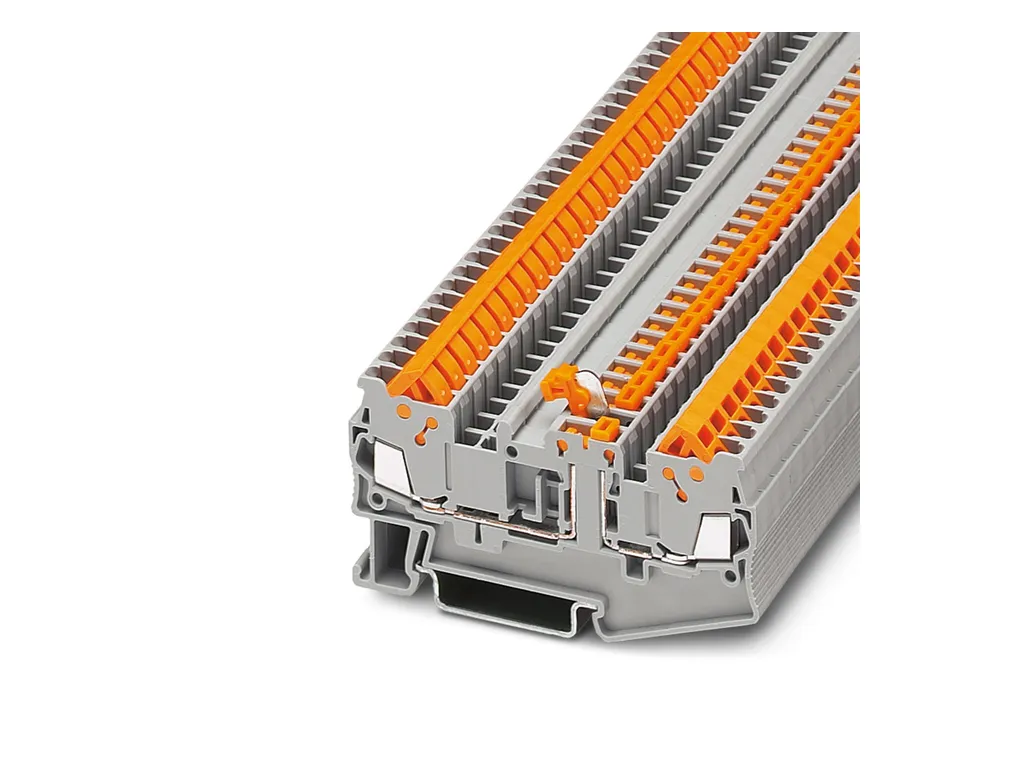

QTC 1,5-MT - Knife-disconnect terminal block

Non disponibile

Knife-disconnect terminal block, nom. voltage:400 V, nominal current:17.5 A, 1 level, connection method: Quick connection, Rated cross section:1.5 mm², cross section:0.25 mm²-1.5 mm², mounting: NS 35/7,5, NS35/15, color:gray

Cod. Articolo:3205103 Copia - Copy

Cod. Fornitore: 3205103 Copia - Copy

PHOENIX CONTACT

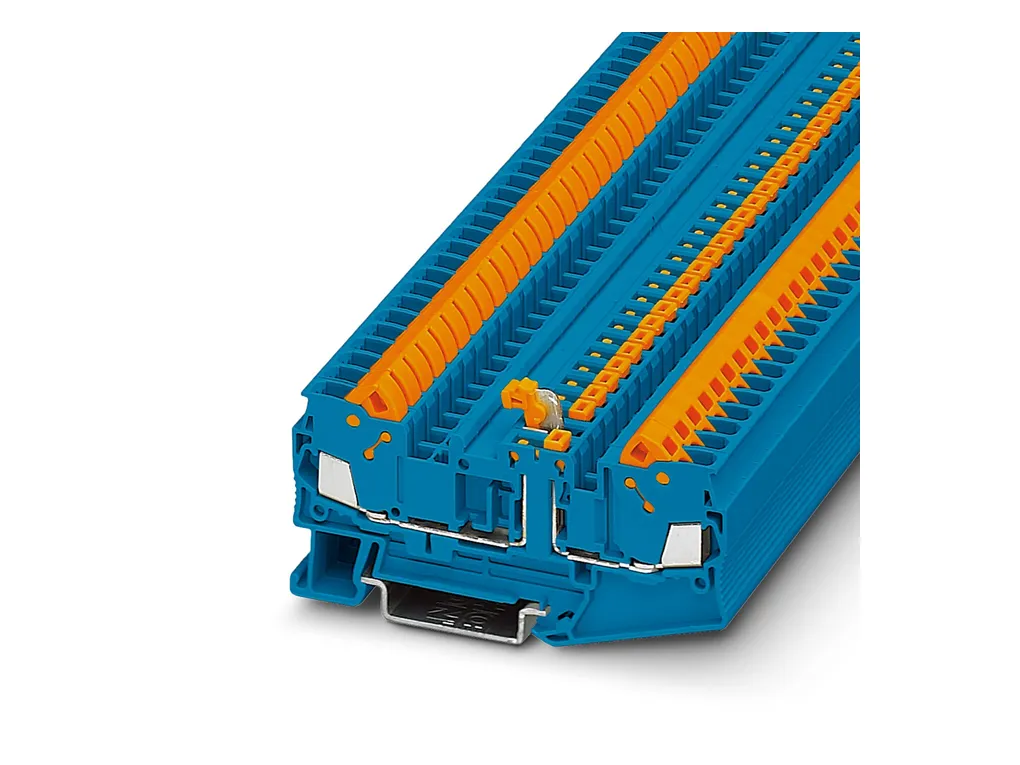

QTC 2,5-MT BU - Knife-disconnect terminal block

Non disponibile

Knife-disconnect terminal block, nom. voltage:400 V, nominal current:20 A, 1 level, connection method: Quick connection, Rated cross section:2.5 mm², cross section:0.5 mm²-2.5 mm², mounting: NS 35/7,5, NS 35/7,5, color:blue

Cod. Articolo:3205226 Copia - Copy

Cod. Fornitore: 3205226 Copia - Copy

PHOENIX CONTACT

QTC 1,5-TWIN-MT - Knife-disconnect terminal block

Non disponibile

Knife-disconnect terminal block, nom. voltage:400 V, nominal current:17.5 A, 1 level, connection method: Quick connection, Rated cross section:1.5 mm², cross section:0.25 mm²-1.5 mm², mounting: NS 35/7,5, NS 35/7,5, color:gray

Cod. Articolo:3050407 Copia - Copy

Cod. Fornitore: 3050407 Copia - Copy

PHOENIX CONTACT

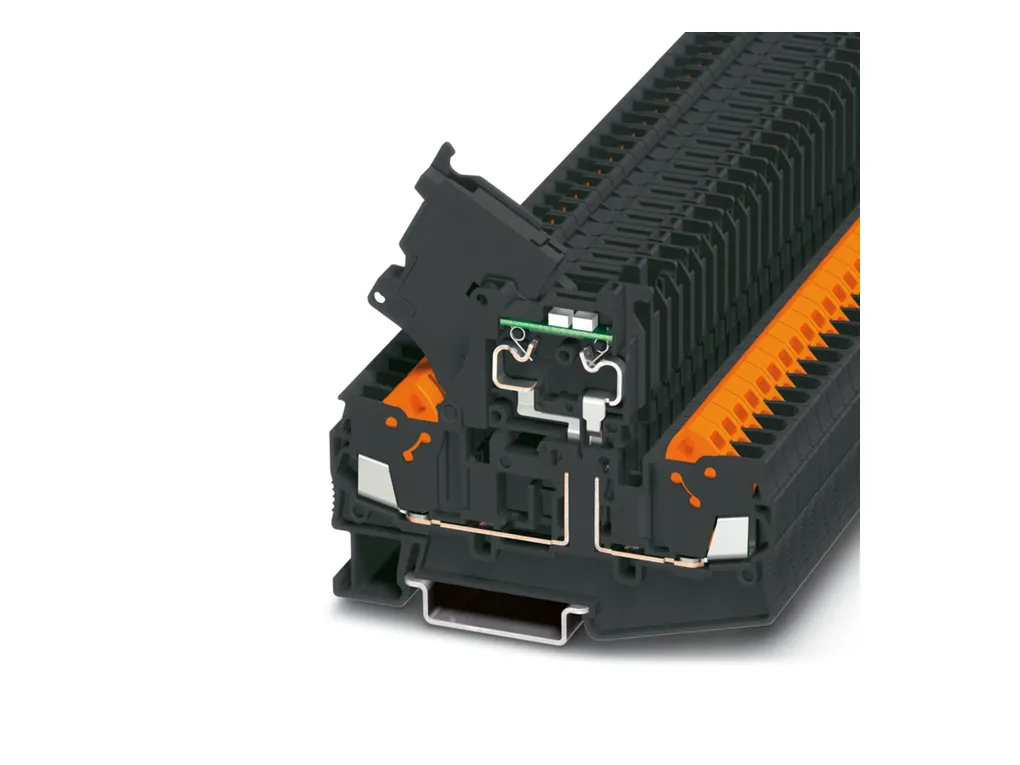

QTC 2,5-HESI (5X20) - Fuse modular terminal block

Non disponibile

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 500 V, nominal current: 6.3 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm², cross section:0.5 mm²- 2.5 mm², mounting type: NS 35/7,5, NS35/15, color: black

Cod. Articolo:3050293 Copia - Copy

Cod. Fornitore: 3050293 Copia - Copy

PHOENIX CONTACT

QTC 2,5-HESILED 24 (5X20) - Fuse modular terminal block

Non disponibile

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 24 V, nominal current: 6.3 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm², cross section:0.5 mm²- 2.5 mm², mounting type: NS 35/7,5, NS35/15, color: black

Cod. Articolo:3050374 Copia - Copy

Cod. Fornitore: 3050374 Copia - Copy

PHOENIX CONTACT

QTC 2,5-HESILA 250 (5X20) - Fuse modular terminal block

Non disponibile

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 250 V, nominal current: 6.3 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm², cross section:0.5 mm²- 2.5 mm², mounting type: NS 35/7,5, NS35/15, color: black

Cod. Articolo:3050387 Copia - Copy

Cod. Fornitore: 3050387 Copia - Copy

PHOENIX CONTACT

QTC 2,5-MT - Knife-disconnect terminal block

Non disponibile

Knife-disconnect terminal block, nom. voltage:400 V, nominal current:20 A, 1 level, connection method: Quick connection, Rated cross section:2.5 mm², cross section:0.5 mm²-2.5 mm², mounting: NS 35/7,5, NS35/15, color:gray

Cod. Articolo:3206487 Copia - Copy

Cod. Fornitore: 3206487 Copia - Copy

PHOENIX CONTACT

QTC 1,5-TWIN-TG - Disconnect terminal block

Non disponibile

Disconnect terminal block, nom. voltage: 400 V, nominal current: 17.5 A, number of connections: 3, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm², cross section: 0.25 mm²-1.5 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Cod. Articolo:3050413 Copia - Copy

Cod. Fornitore: 3050413 Copia - Copy

PHOENIX CONTACT

QTC 1,5-TG - Disconnect terminal block

Non disponibile

Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage:400 V, nominal current:17.5 A, 1 level, connection method: Quick connection, Rated cross section:1.5 mm², cross section:0.25 mm²-1.5 mm², mounting: NS 35/7,5, NS35/15, color:gray

Cod. Articolo:3205145 Copia - Copy

Cod. Fornitore: 3205145 Copia - Copy

PHOENIX CONTACT

QTC 2,5-TG - Disconnect terminal block

Non disponibile

Disconnect terminal block, Current and voltage are determined by the plug used., nom. voltage:400 V, nominal current:20 A, 1 level, connection method: Quick connection, Rated cross section:2.5 mm², cross section:0.5 mm²-2.5 mm², mounting: NS 35/7,5, NS35/15, color:gray

Cod. Articolo:3206490 Copia - Copy

Cod. Fornitore: 3206490 Copia - Copy

PHOENIX CONTACT

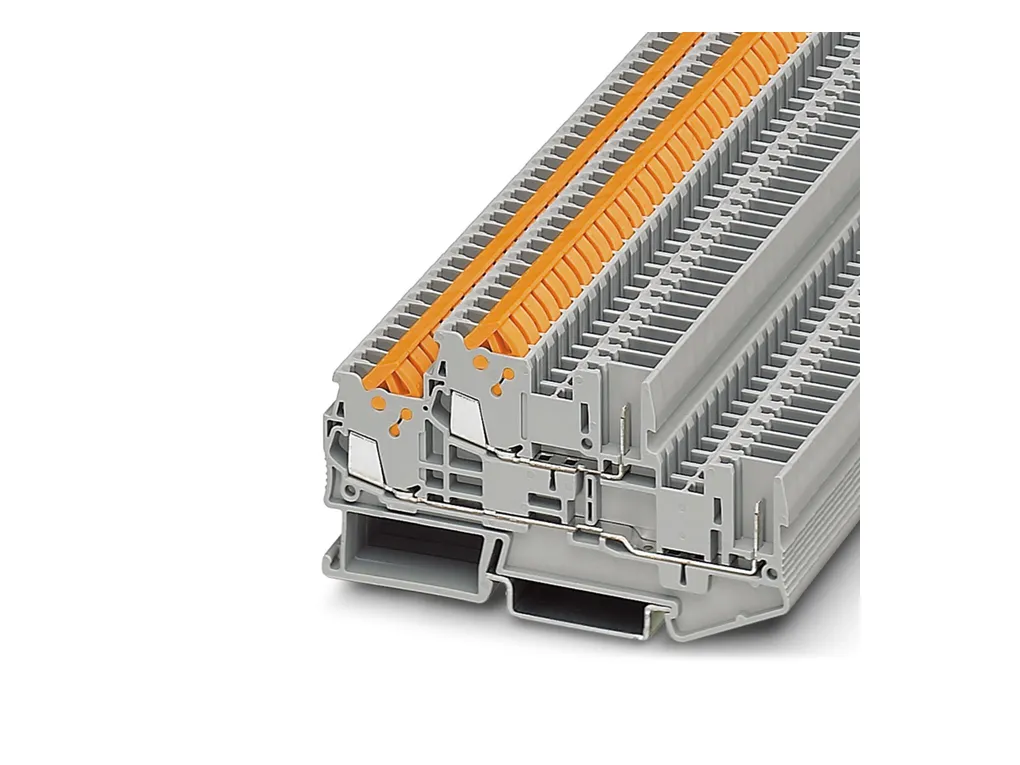

QTTCB 1,5/ 2P - Double-level terminal block

Non disponibile

Double-level terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 17.5 A, connection method: Fast/plug-in connection, Rated cross section: 1.5 mm², cross section: 0.25 mm² - 1.5 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Cod. Articolo:3050196 Copia - Copy

Cod. Fornitore: 3050196 Copia - Copy

PHOENIX CONTACT

QTTCB 1,5/ 2P BU - Double-level terminal block

Non disponibile

Double-level terminal block, Current and voltage are determined by the plug used., nom. voltage: 500 V, nominal current: 17.5 A, connection method: Fast/plug-in connection, Rated cross section: 1.5 mm², cross section: 0.25 mm² - 1.5 mm², mounting: NS 35/7,5, NS35/15, color: blue

Cod. Articolo:3050206 Copia - Copy

Cod. Fornitore: 3050206 Copia - Copy

PHOENIX CONTACT

QTTCB 1,5/ 2P-PV - Double-level terminal block

Non disponibile

Double-level terminal block, Current and voltage are determined by the plug used., with equipotential bonder, nom. voltage: 500 V, nominal current: 17.5 A, connection method: Fast/plug-in connection, Rated cross section: 1.5 mm², cross section: 0.25 mm² - 1.5 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Cod. Articolo:3206377 Copia - Copy

Cod. Fornitore: 3206377 Copia - Copy

PHOENIX CONTACT

QTC 2,5 HESILED 60 (5X20) - Fuse modular terminal block

Non disponibile

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 60 V, nominal current: 6.3 A, connection method: Quick connection, 1 level, Rated cross section: 1.5 mm², cross section:0.5 mm²- 2.5 mm², mounting type: NS 35/7,5, NS35/15, color: black

Cod. Articolo:3050390 Copia - Copy

Cod. Fornitore: 3050390 Copia - Copy

PHOENIX CONTACT

QTC 2,5-HEDI - Lever-type disconnect terminal block

Non disponibile

Lever-type disconnect terminal block, nom. voltage: 500 V, nominal current: 20 A, number of connections: 2, connection method: Quick connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.5 mm²-2.5 mm², mounting type: NS 35/7,5, NS35/15, color: black/orange

Cod. Articolo:3206678 Copia - Copy

Cod. Fornitore: 3206678 Copia - Copy

PHOENIX CONTACT
