OTTA 6-P/P YE - Bolt connection terminal block

Non disponibile

Bolt connection terminal block, With test socket screws for insertion of test plugs, nom. voltage: 800 V, nominal current: 41 A, number of connections: 2, connection method: Bolt connection, 1 level, Rated cross section: 6 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: yellow

Cod. Articolo:0790621 Copia - Copy

Cod. Fornitore: 0790621 Copia - Copy

PHOENIX CONTACT

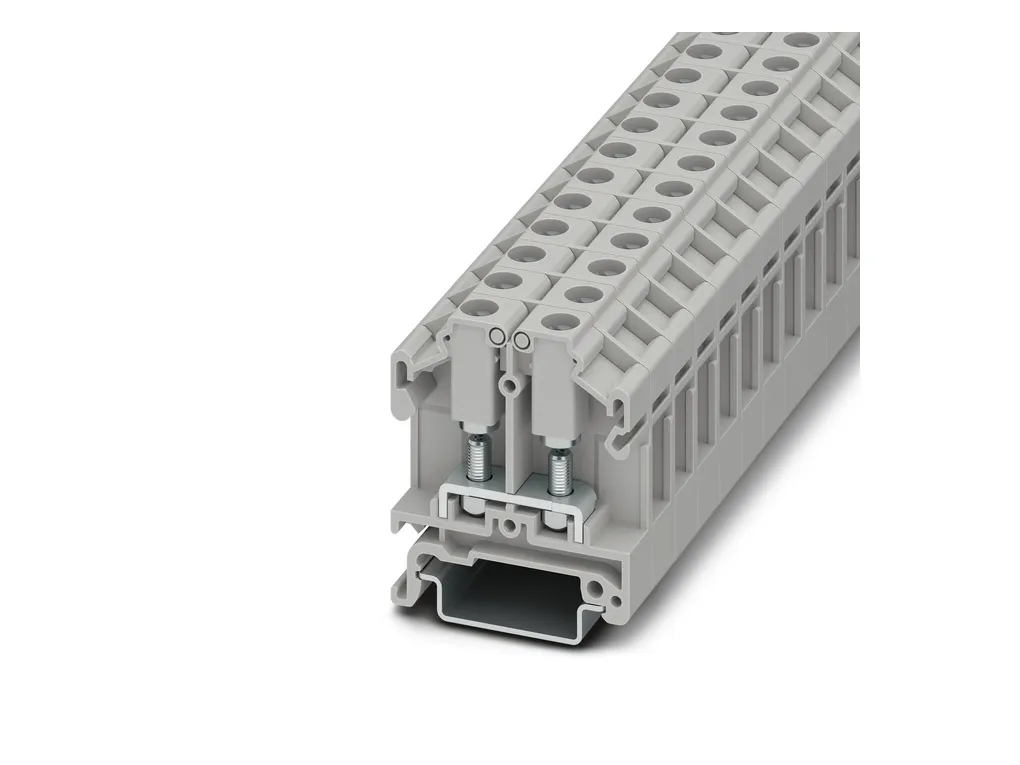

OTTA 6-HV - Bolt connection terminal block

Non disponibile

Bolt connection terminal block, nom. voltage: 1000 V, nominal current: 41 A, connection method: Bolt connection, Rated cross section: 6 mm², cross section: 0.5 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Cod. Articolo:1147172 Copia - Copy

Cod. Fornitore: 1147172 Copia - Copy

PHOENIX CONTACT

OTTA 6-P/P-HV - Bolt connection terminal block

Non disponibile

Bolt connection terminal block, With test socket screws for insertion of test plugs, nom. voltage: 1000 V, nominal current: 41 A, connection method: Bolt connection, Rated cross section: 6 mm², cross section: 0.5 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: gray

Cod. Articolo:1147323 Copia - Copy

Cod. Fornitore: 1147323 Copia - Copy

PHOENIX CONTACT

OTTA 2,5 - Bolt connection terminal block

Non disponibile

Universal terminal block with bolt connection, cross section: 0.1 - 2.5 mm², width: 9 mm, color: Gray

Cod. Articolo:0790530 Copia - Copy

Cod. Fornitore: 0790530 Copia - Copy

PHOENIX CONTACT

OTTA 2,5-P/P - Bolt connection terminal block

Non disponibile

Universal terminal block with bolt connection, with test socket screws, cross section: 0.1 - 2.5 mm², width: 9 mm, color: Gray

Cod. Articolo:0790543 Copia - Copy

Cod. Fornitore: 0790543 Copia - Copy

PHOENIX CONTACT

OTTA 2,5-PE - Ground terminal

Non disponibile

Protective conductor universal terminal block with bolt connection, cross section: 0.1 - 2.5 mm², width: 9 mm, color: Green-yellow

Cod. Articolo:0790556 Copia - Copy

Cod. Fornitore: 0790556 Copia - Copy

PHOENIX CONTACT

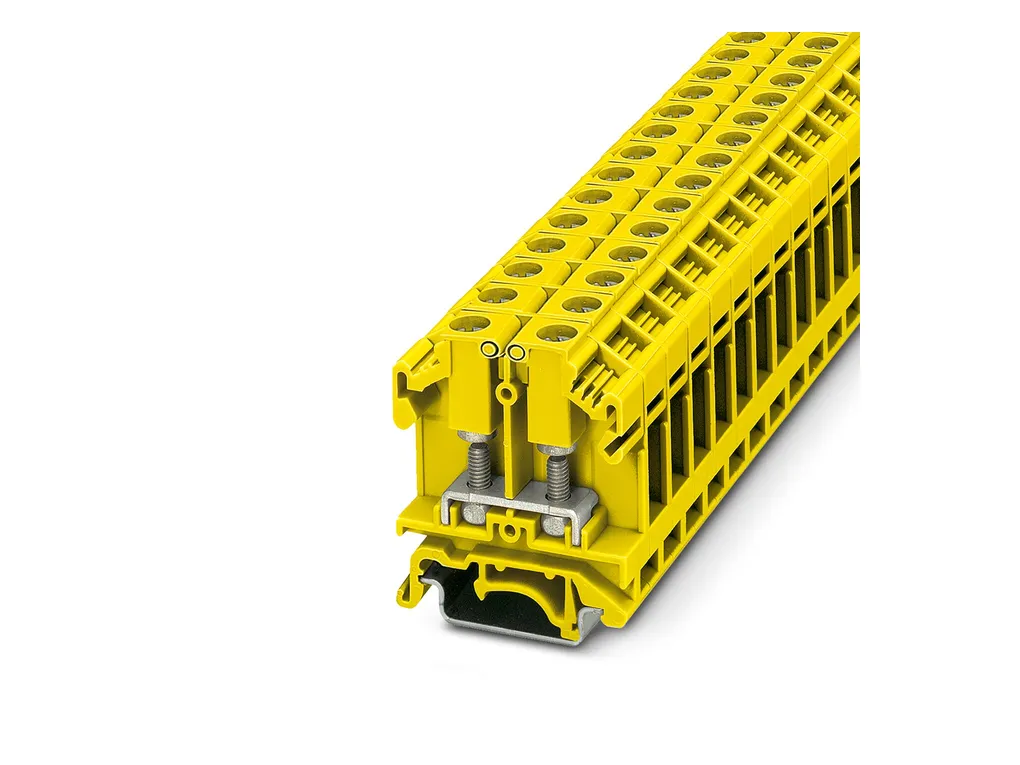

OTTA 6 YE - Bolt connection terminal block

Non disponibile

Bolt connection terminal block, nom. voltage: 800 V, nominal current: 41 A, number of connections: 2, connection method: Bolt connection, 1 level, Rated cross section: 6 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: yellow

Cod. Articolo:0790620 Copia - Copy

Cod. Fornitore: 0790620 Copia - Copy

PHOENIX CONTACT

OTTAD 6/SB - Feed-through terminal block

Non disponibile

Feed-through terminal block, With test socket screws for insertion of test plugs, nom. voltage: 1000 V, nominal current: 41 A, connection method: Bolt connection, Rated cross section: 6 mm², cross section: 0.5 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Cod. Articolo:1147122 Copia - Copy

Cod. Fornitore: 1147122 Copia - Copy

PHOENIX CONTACT

OTTA 6-T/SB-P/P - Disconnect terminal block

Non disponibile

Disconnect terminal block, With test socket screws for insertion of test plugs, nom. voltage:1000 V, nominal current:41 A, 1 level, connection method: Bolt connection, Rated cross section:6 mm², mounting: NS 35/7,5, NS35/15, NS32, color:gray

Cod. Articolo:3001269 Copia - Copy

Cod. Fornitore: 3001269 Copia - Copy

PHOENIX CONTACT

D-OTTA 6 - End cover

Non disponibile

End cover, width: 1.5 mm, height: 43.5 mm, color: gray

Cod. Articolo:0790417 Copia - Copy

Cod. Fornitore: 0790417 Copia - Copy

PHOENIX CONTACT

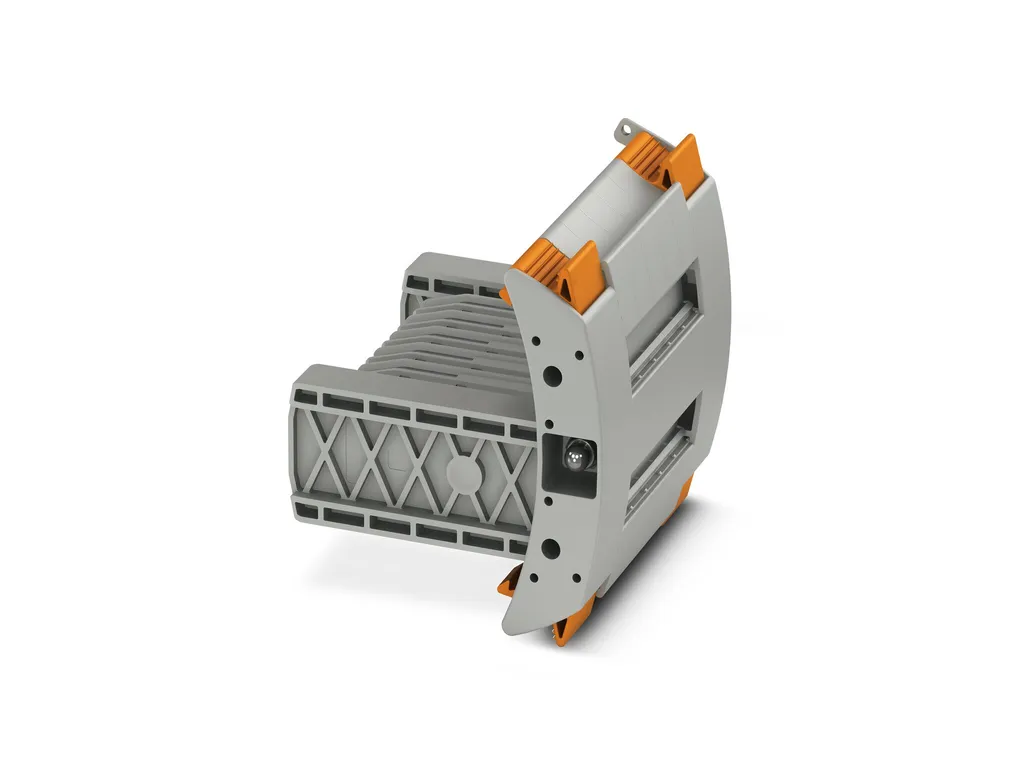

FWP 9+1 - Power plug

Non disponibile

Power plug, nom. voltage: 400 V, nominal current: 24 A, number of positions: 10, Rated cross section: 6 mm², color: gray

Cod. Articolo:1029715 Copia - Copy

Cod. Fornitore: 1029715 Copia - Copy

PHOENIX CONTACT

OTTA 6-T-P/P - Disconnect terminal block

Non disponibile

Disconnect terminal block, with disconnect slide and test socket screws for insertion of test plugs, nom. voltage:800 V, nominal current:36 A, 1 level, connection method: Bolt connection, Rated cross section:6 mm², mounting: NS 35/7,5, NS35/15, NS32, color:gray

Cod. Articolo:0790462 Copia - Copy

Cod. Fornitore: 0790462 Copia - Copy

PHOENIX CONTACT

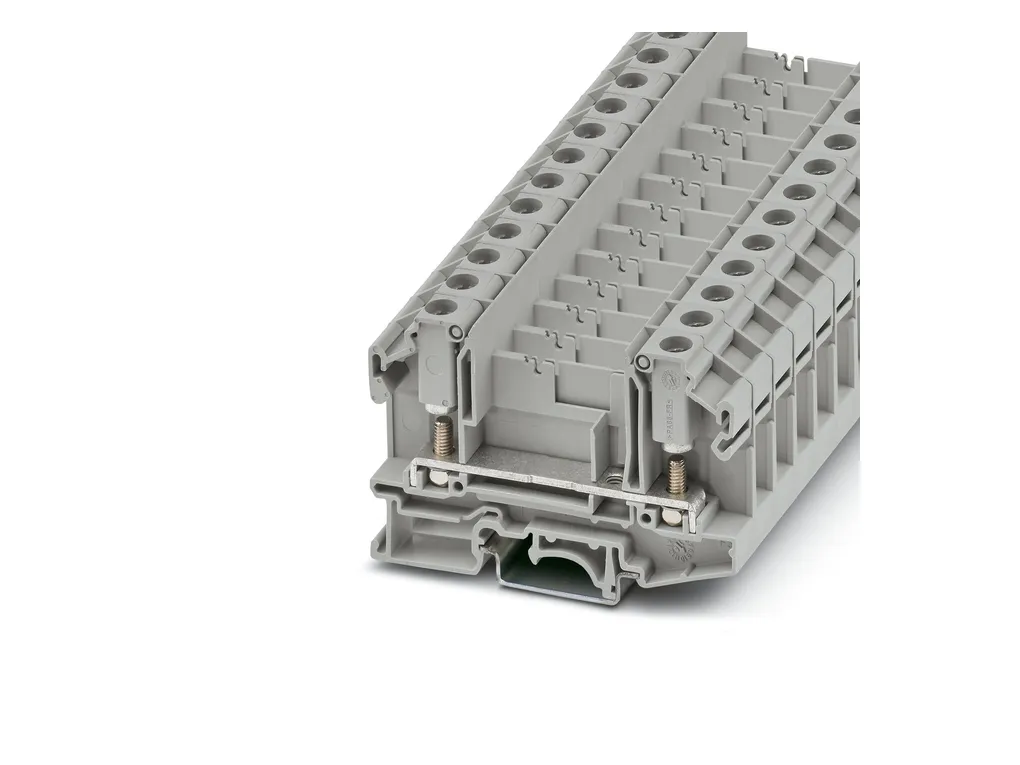

OTTAD 6/SB-P/P - Feed-through terminal block

Non disponibile

Feed-through terminal block, With test socket screws for insertion of test plugs, nom. voltage: 1000 V, nominal current: 41 A, number of connections: 2, connection method: Bolt connection, 1 level, Rated cross section: 6 mm², cross section: 0.1 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, NS32, color: gray

Cod. Articolo:1033182 Copia - Copy

Cod. Fornitore: 1033182 Copia - Copy

PHOENIX CONTACT
