Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: red

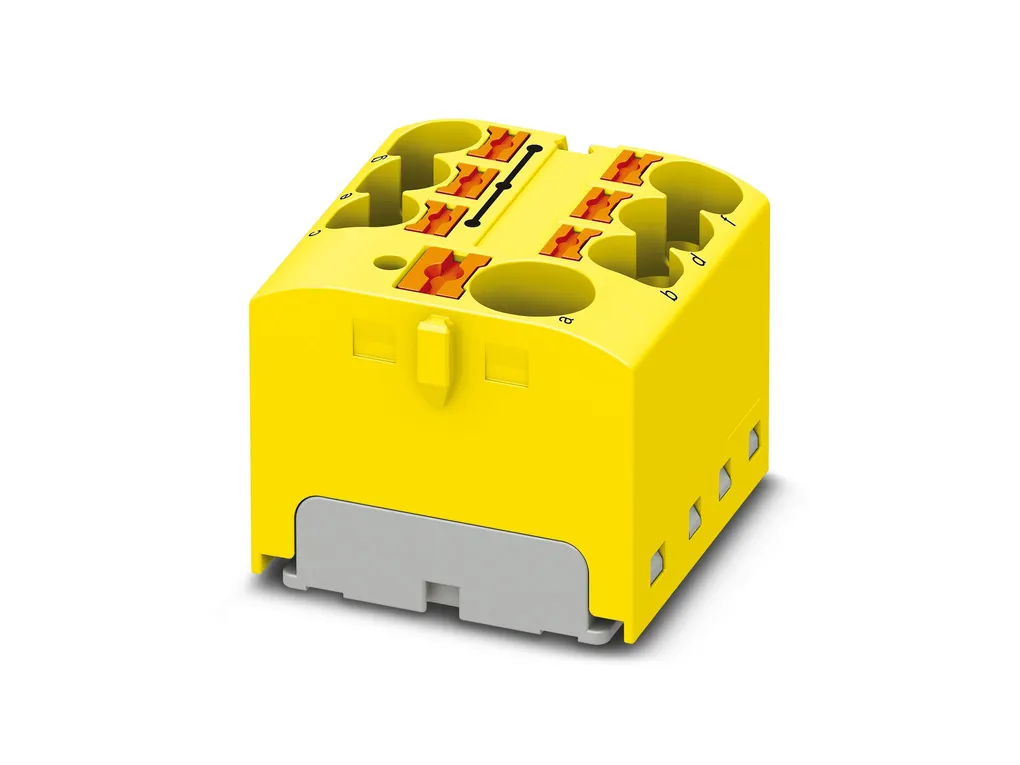

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: yellow

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: green

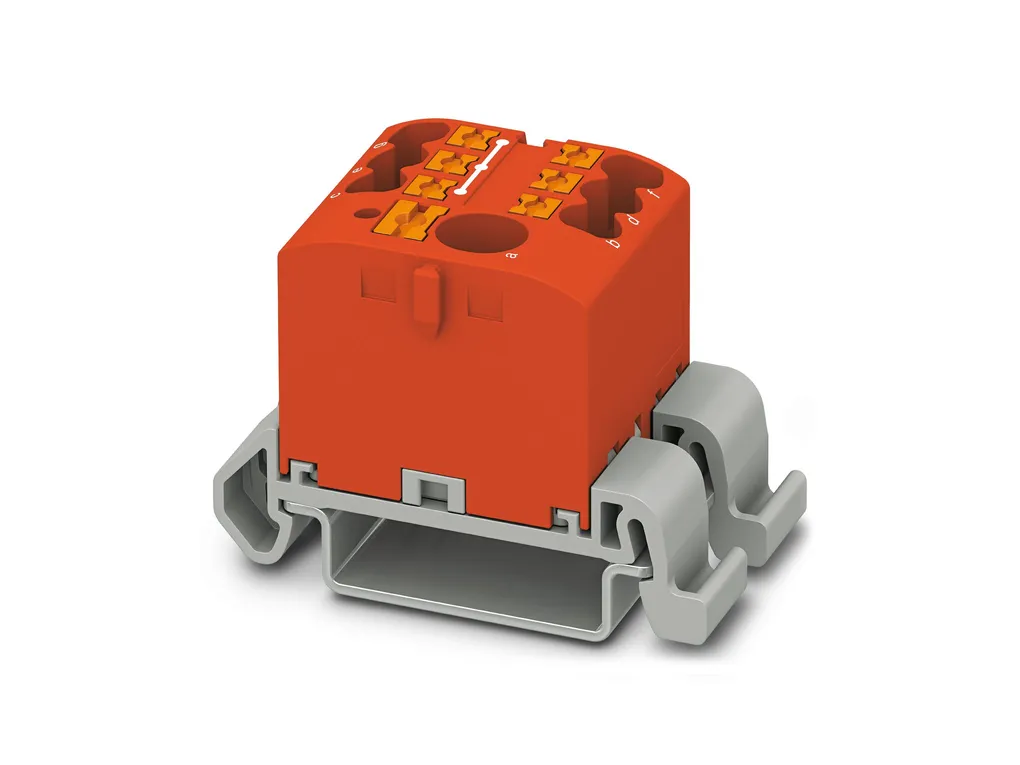

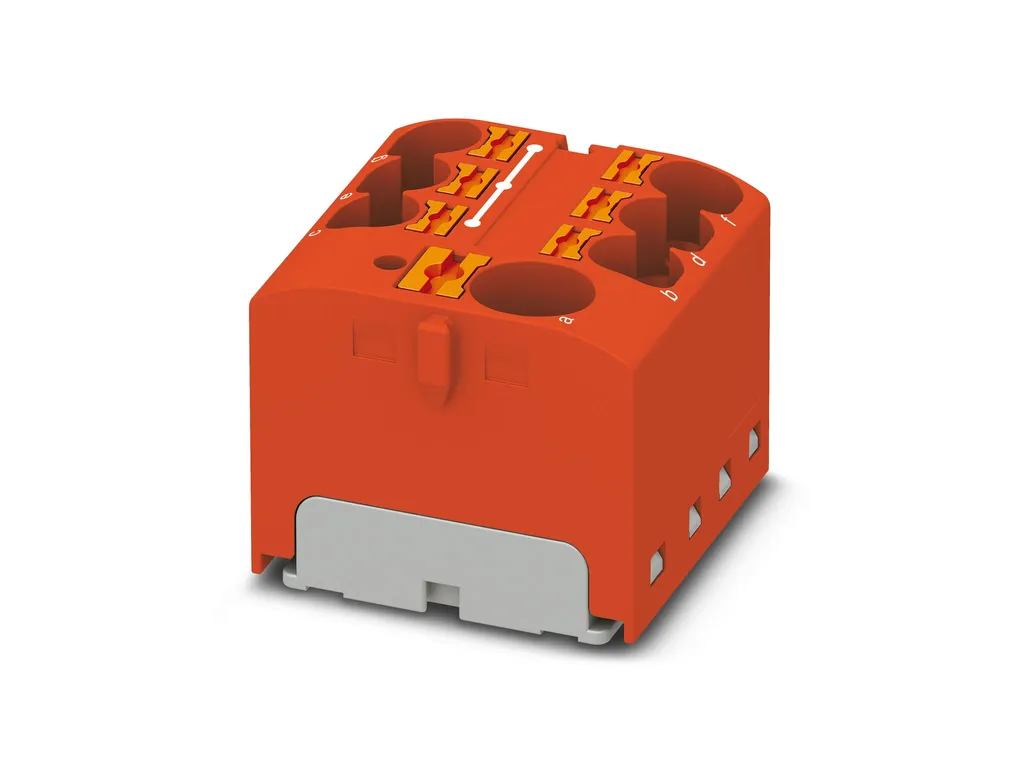

Distribution block, nom. voltage: 800 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: NS 35/7,5, NS35/15, color: orange

Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 41 A, number of connections: 7, connection method: Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: gray

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: blue

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: pink

Distribution block, Block with horizontal alignment and integrated supply, nom. voltage: 690 V, nominal current: 24 A, number of connections: 13, connection method: Push-in connection, Load contact, cross section: 0.14 mm²-4 mm², Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm²-10 mm², mounting type: NS 35/7,5, NS35/15, color: brown

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: black/yellow

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: brown

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: white

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: black

Distribution block, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: violet

Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: adhesive, color: gray

Distribution block, bridged internally, nom. voltage: 450 V, nominal current: 57 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 10 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, Rated cross section: 4 mm², cross section: 0.2 mm²-6 mm², mounting type: adhesive, color: blue

Distribution block, Block with horizontal alignment and integrated supply, nom. voltage: 690 V, nominal current: 41 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.14 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, color: violet

Distribution block, Block with horizontal alignment and integrated supply, nom. voltage: 690 V, nominal current: 41 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.14 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, color: red

Distribution block, Block with horizontal alignment and integrated supply, nom. voltage: 690 V, nominal current: 41 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.14 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, color: yellow

Distribution block, Block with horizontal alignment and integrated supply, nom. voltage: 690 V, nominal current: 41 A, number of connections: 7, connection method: Push-in connection, Line contact, Rated cross section: 6 mm², cross section: 0.5 mm²-10 mm², Push-in connection, Load contact, cross section: 0.14 mm²-4 mm², mounting type: NS 35/7,5, NS35/15, color: green
