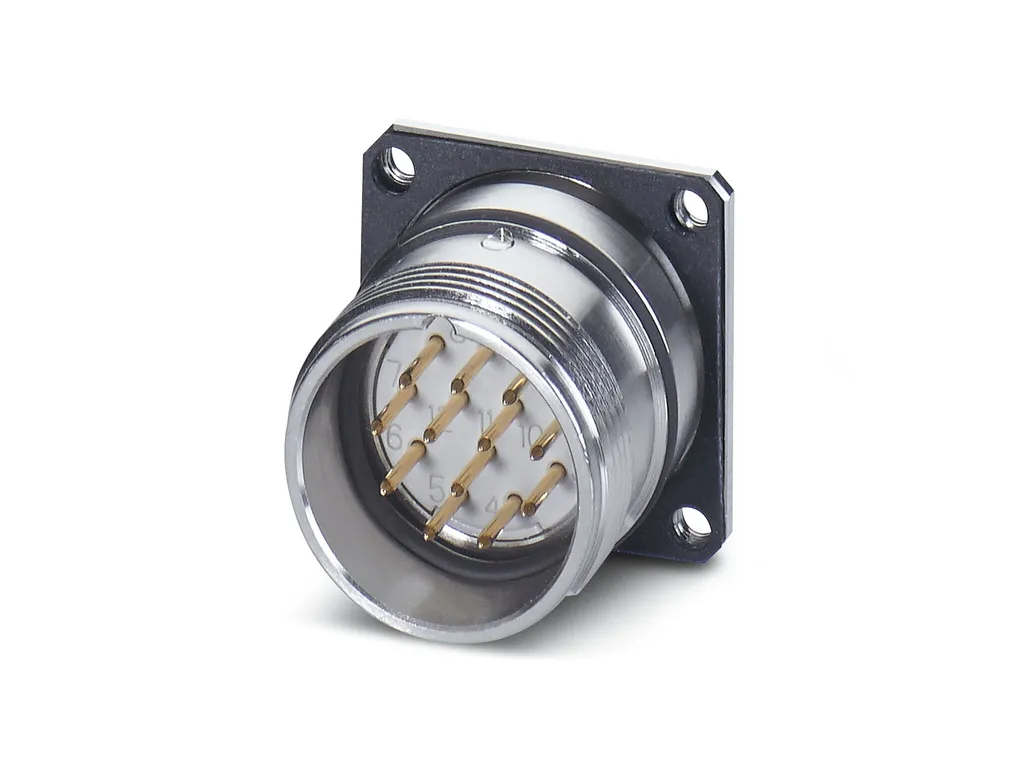

M23, Device connector, rear mounting, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Solder-in connection, Radial O-ring, 4xM3, Panel thickness min.: 3 mm, Panel thickness max.: 10.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240870

Device connector rear mounting, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240874

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, Flat gasket, 4x Ø2,7, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5 mm, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240875

M23, Device connector, rear mounting, series: RC, straight, shielded: yes, Screw locking mechanism, Radial O-ring, 4xM3, Panel thickness min.: 3 mm, Panel thickness max.: 10.5 mm

Device connector rear mounting

M23, Device connector, rear mounting, series: RC, straight, shielded: yes, Screw locking mechanism, Radial O-ring, 4xM3, Panel thickness min.: 3 mm, Panel thickness max.: 10.5 mm, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240938

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, Flat gasket, 4xM3, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241049

M23, Device connector, rear mounting, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, Axial O-ring, Central fastening M25 x 1.5, Panel thickness min.: 0.8 mm, Panel thickness max.: 6.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241068

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Socket, Solder-in connection, Radial O-ring, 4xM3, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241079

M23, Device connector, rear mounting, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Counter direction, contact connection type: Socket, Solder cup, Axial O-ring, Central fastening M25 x 1.5, Panel thickness min.: 0.8 mm, Panel thickness max.: 6.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241143

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Solder cup, Flat gasket, 4x M2.5, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241313

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, Flat gasket, 4x M2.5, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241296

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, No. of pos.: 16, Direction of rotation: Standard, contact connection type: Socket, Solder cup, Flat gasket, 4xM3, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241262

Contact insert, M23, contact connection type: Socket, Crimp connection

M23, Device connector, rear mounting, series: RC, straight, shielded: yes, Screw locking mechanism, Radial O-ring, 4x M2.5, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5 mm, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241247

Device connector rear mounting, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241089

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, Flat gasket, 4xM3, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5 mm

Device connector rear mounting

Contact insert, M23, number of positions: 7, contact connection type: Socket, Solder cup, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240512

Device connector rear mounting
