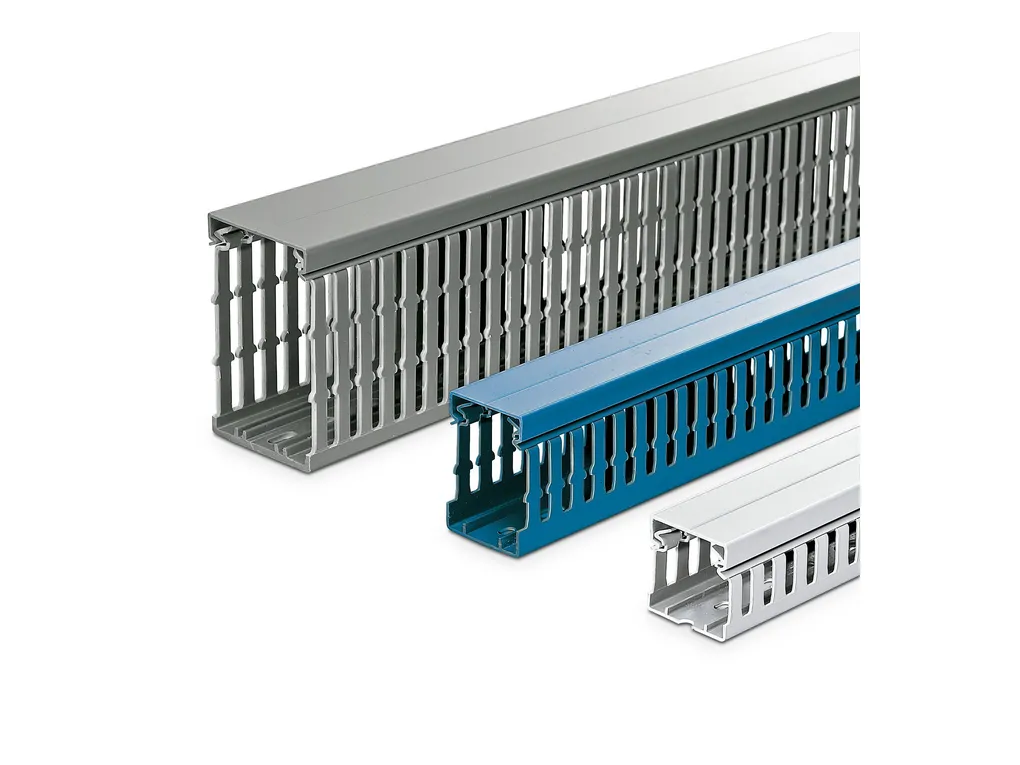

CD-HF 120X80 - Cable duct

Cable duct for installation and mounting in control cabinets, light gray, halogen-free, comprising upper part and mounting base, width: 120 mm, height: 80 mm, length: 2000 mm

Product Code: 3240366

Partner cod.: 3240366

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Product properties	Product type: Wiring duct
Connection data	Nominal cross section: 6737 mm²
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ac9d6e4c2867ee4aab3520282d3cebd8/-S204x204-FJPG Width: 120 mm Height: 2000 mm Depth: 80 mm Length: 2000 mm
Material specifications	Color: light grey RAL7035 Material: PC/ABS Flammability rating according to UL 94: V0 Components: halogen-free
Cable/line	Halogen-free: yes
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 90°C

Technical Specs

ECLASS	ECLASS-11.0: 27400703 ECLASS-12.0: 27400703 ECLASS-13.0: 27400703
ETIM	ETIM 9.0: EC000012
UNSPSC	UNSPSC 21.0: 39131700
