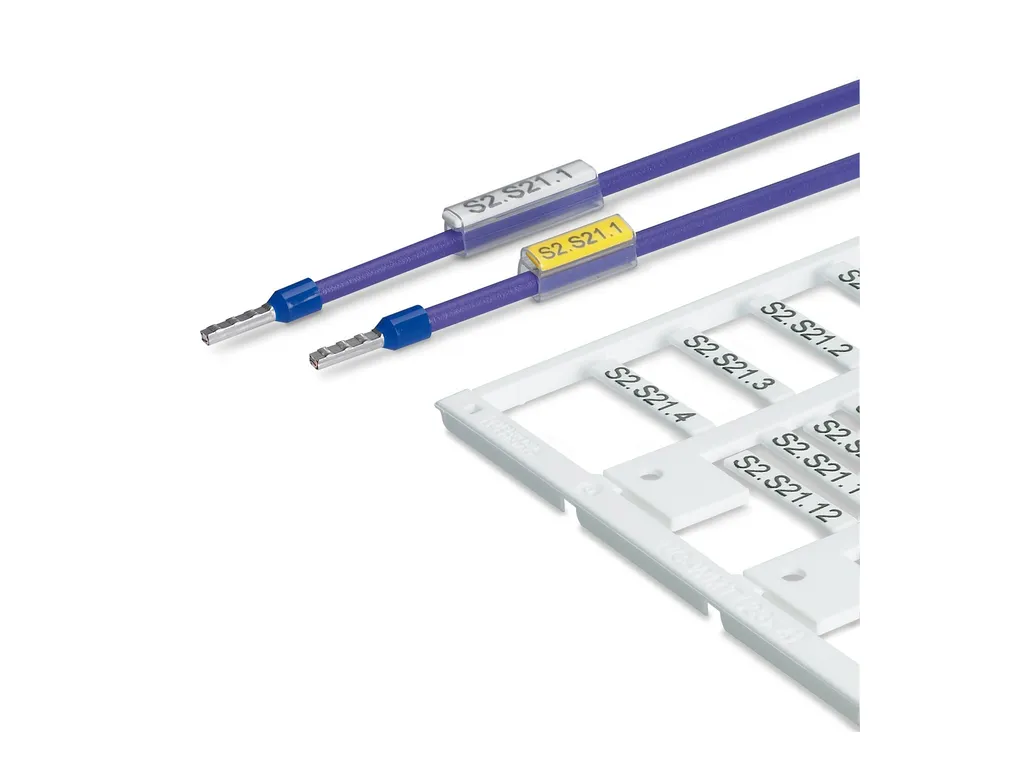

| Product properties | Product type: Conductor marking Type: Card form Marking Number of individual labels: 32 Number of individual labels per row: 8 Identification technology: UV LED technology |
| Dimensions | Width: 12 mm Length: 4 mm |
| Material specifications | RoHS compliant: yes Color: red Material: PA Flammability rating according to UL 94: V2 Base element material: PA Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 120°C Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 2 Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 2 Components: free from silicone and halogen |
| Cable/line | External cable diameter: 0.6 mm ... 10 mm |
| Environmental and real-life conditions | Test for substances that would hinder coating with paint or varnish Result: Test passed UV resistance Specification: ISO4892-2:2013-03 (following) Result: Test passed Test duration: 96 h Wipe resistance of inscriptions Specification: DINEN61010-1 (VDE0411-1):2011-07 DINEN62208 (VDE0660-511):2012-06 (in parts) Testing in a condensation changing climate in the presence of sulfur dioxide Specification: DIN50018:2013-05 Result: Test passed Climate level: AHT 1.0 S Cycles: 2 Salt spray test Specification: DINEN60068-2-11:2000-02 Result: Test passed Ambient conditions Ambient temperature (operation): -40°C ... 120°C Recommended storage conditions: 23°C/50% relative humidity. Storage in a dry and dark place in the original packaging is recommended. Recommended ambient temperature (storage/transport): 23°C Recommended humidity (storage/transport): 50 % |
| Standards and regulations | Wipe resistance: DINEN61010-1 (VDE0411-1) |
| Mounting | Mounting type: insert |
| ECLASS | ECLASS-11.0: 27281106 ECLASS-12.0: 27281106 ECLASS-13.0: 27281106 |
| ETIM | ETIM 9.0: EC001530 |
| UNSPSC | UNSPSC 21.0: 39131700 |
